PTCCL05H150
Radial PTC thermistors for overcurrent and temperature protection
Manufacturer： ['vishay-bc-components', 'bc-components', 'vishay']
series introduction
# Introduction to the PTCCL05H150 Product Series
## Overview
The PTCCL05H150 product series represents a cutting - edge and highly reliable line of components designed to meet the diverse and demanding requirements of modern electrical and electronic systems. These products are engineered with precision and incorporate the latest technological advancements to ensure optimal performance, safety, and durability.
## Key Features
### 1. Precision Temperature Control
The PTCCL05H150 series is built around a Positive Temperature Coefficient (PTC) technology. PTC materials have a unique property where their electrical resistance increases significantly with an increase in temperature. This characteristic allows for precise temperature control within the system. When the temperature rises above a certain threshold, the resistance of the PTC component in the PTCCL05H150 series increases rapidly, which in turn limits the current flow. This self - regulating feature helps in maintaining a stable temperature, preventing overheating and potential damage to the connected equipment.
### 2. High Power Handling Capacity
These components are designed to handle high power levels. With a power rating that is well - suited for a variety of industrial and commercial applications, the PTCCL05H150 series can withstand large electrical currents without compromising on performance. This high power handling capacity makes them ideal for use in power supplies, motor control circuits, and other high - power electrical systems.
### 3. Compact Design
Despite their high - power capabilities, the PTCCL05H150 series features a compact design. This space - saving feature is crucial in modern electronic devices where miniaturization is a key trend. The compact form factor allows for easy integration into existing circuit boards and systems, reducing the overall footprint of the equipment and enabling more efficient use of space.
### 4. Excellent Thermal Stability
Thermal stability is a critical factor in the performance of electrical components. The PTCCL05H150 series exhibits excellent thermal stability over a wide range of operating temperatures. This means that the components can maintain their electrical and thermal properties consistently, even in harsh environmental conditions. Whether it's in a high - temperature industrial setting or a cold outdoor environment, the PTCCL05H150 series will continue to function reliably.
### 5. Long Service Life
The components in the PTCCL05H150 series are built to last. They are made from high - quality materials and undergo rigorous testing during the manufacturing process to ensure long - term reliability. The robust construction and high - quality materials contribute to a long service life, reducing the need for frequent replacements and minimizing downtime in the systems where they are used.
## Applications
### 1. Power Supplies
In power supply units, the PTCCL05H150 series can be used for over - current and over - temperature protection. By limiting the current flow when the temperature rises, these components prevent damage to the power supply circuitry and the connected devices. They also help in maintaining a stable output voltage, improving the overall efficiency and reliability of the power supply.
### 2. Motor Control
Motors are prone to overheating, especially during start - up or under heavy load conditions. The PTCCL05H150 series can be integrated into motor control circuits to protect the motor from excessive current and temperature. By regulating the current flow, these components ensure smooth motor operation and extend the motor's lifespan.
### 3. Battery Management Systems
Battery management systems require precise temperature control to ensure the safety and longevity of the batteries. The PTCCL05H150 series can be used in battery packs to monitor and control the temperature. In case of overheating, the PTC component will increase its resistance, reducing the charging or discharging current and preventing battery damage.
### 4. Consumer Electronics
In
Images for reference

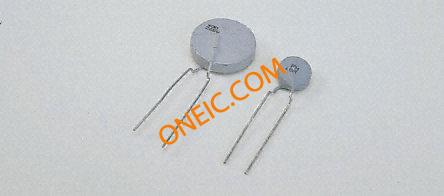

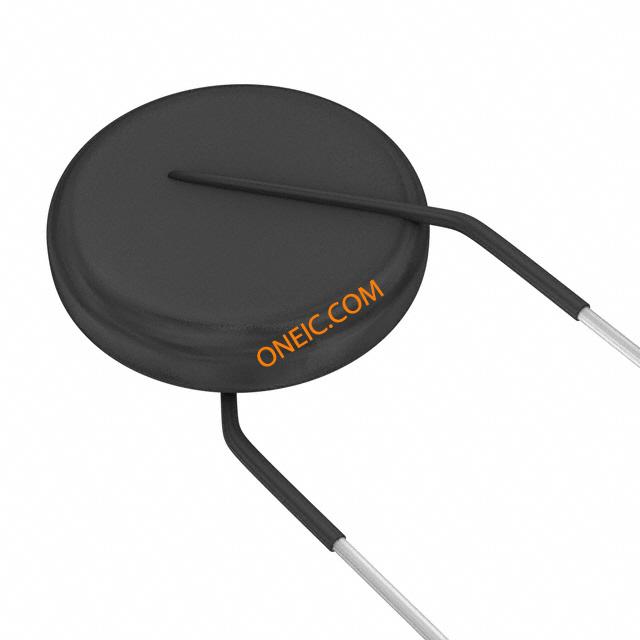

PTCCL Series
