PIC18F45K80-I/PT
8-bit microcontrollers with 32KB flash, 4KB RAM, and 44-pin TQFP packaging
Manufacturer： microchip
series introduction
# Introduction to the PIC18F45K80 - I/PT Product Series
## 1. Overview
The PIC18F45K80 - I/PT is a member of Microchip Technology's PIC18F family of 8 - bit microcontrollers. These microcontrollers are designed to offer a high - performance, cost - effective solution for a wide range of embedded applications. The "I/PT" in the part number typically indicates a specific package type and temperature range, which in this case is a 40 - pin TQFP (Thin Quad Flat Package) and a commercial temperature range.
## 2. Key Features
### 2.1 CPU and Memory
- **High - Performance CPU**: The PIC18F45K80 is powered by an enhanced Harvard architecture 8 - bit CPU. It has a high - speed instruction execution capability, with a maximum operating frequency of up to 64 MHz. This allows for rapid processing of instructions, enabling the microcontroller to handle complex tasks efficiently.
- **Program Memory**: It comes with up to 64 KB of Flash program memory. Flash memory is non - volatile, which means that the program code stored in it is retained even when the power is turned off. This large program memory capacity allows developers to implement relatively large and complex applications.
- **Data Memory**: The microcontroller has 4 KB of RAM (Random Access Memory) for storing variables and intermediate data during program execution. Sufficient RAM is crucial for applications that require data buffering, such as data acquisition systems.
### 2.2 Peripherals
#### 2.2.1 Communication Peripherals
- **USART (Universal Synchronous Asynchronous Receiver Transmitter)**: The PIC18F45K80 features one or more USART modules. These modules support both synchronous and asynchronous serial communication, making it easy to interface with other devices such as sensors, displays, and communication modules. For example, it can be used to communicate with a GPS module via an asynchronous serial link to receive location data.
- **SPI (Serial Peripheral Interface)**: The SPI interface allows for high - speed serial communication between the microcontroller and other SPI - compatible devices. It is commonly used for communicating with external memory chips, sensors, and display drivers. The SPI interface operates in a master - slave configuration, where the PIC18F45K80 can act as the master device to control multiple slave devices.
- **I²C (Inter - Integrated Circuit)**: The I²C interface provides a simple and efficient way to communicate with other I²C - enabled devices. It uses a two - wire bus (SDA - Serial Data Line and SCL - Serial Clock Line) and supports multi - master and multi - slave communication. This makes it suitable for applications where multiple devices need to be connected on the same bus, such as in a sensor network.
#### 2.2.2 Analog Peripherals
- **ADC (Analog - to - Digital Converter)**: The microcontroller is equipped with a 10 - bit ADC. The ADC can convert analog input signals from sensors (such as temperature sensors, light sensors, etc.) into digital values that the microcontroller can process. It has multiple input channels, allowing it to sample multiple analog signals simultaneously.
- **Comparator**: A comparator is included in the PIC18F45K80. It can compare two analog input voltages and generate a digital output based on the comparison result. This can be used for applications such as over - voltage protection or level detection.
#### 2.2.3 Timers and Counters
- **Multiple Timers**: The device has several timers, including 8 - bit and 16 - bit timers. Timers can be used for a variety of
Images for reference

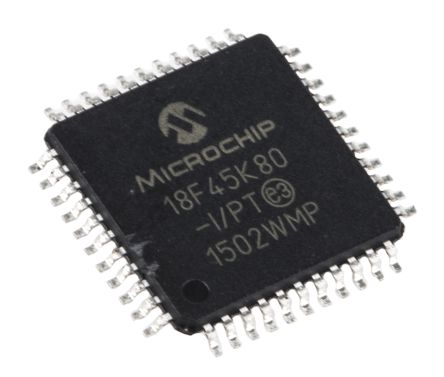

44-TQFP
