PIC12F1571-I/MS
8-bit microcontrollers with flash memory and compact MSOP packaging
Manufacturer： microchip
series introduction
# PIC12F1571 - I/MS Product Series Introduction
## 1. Overview
The PIC12F1571 - I/MS is a highly versatile and feature - rich product series from Microchip Technology. It belongs to the PIC12F family of 8 - bit microcontrollers, which are well - known for their low power consumption, high performance, and extensive peripheral integration. These microcontrollers are designed to meet the diverse needs of a wide range of applications, from simple consumer electronics to more complex industrial control systems.
## 2. Key Features
### 2.1 Core and Memory
- **CPU Core**: The PIC12F1571 - I/MS is based on an enhanced mid - range RISC CPU core. This core offers a high - performance instruction set architecture with a large number of single - cycle instructions, enabling fast execution of code. It has a 14 - bit wide instruction word, which allows for efficient program storage and execution.
- **Program Memory**: It comes with up to 4 KB of Flash program memory. Flash memory is non - volatile, meaning that the program code stored in it is retained even when the power is turned off. This makes it suitable for applications where the program needs to be permanently stored, such as in embedded systems.
- **Data Memory**: The microcontroller has 256 bytes of RAM (Random Access Memory). RAM is used for storing temporary data during the execution of the program, such as variables, intermediate results, and stack operations.
### 2.2 Peripherals
#### 2.2.1 GPIO (General - Purpose Input/Output)
- The PIC12F1571 - I/MS has a configurable number of GPIO pins. These pins can be used to interface with external devices such as sensors, actuators, and displays. The GPIO pins can be set as either input or output, and their logic levels can be easily controlled through software.
- They also support features like pull - up and pull - down resistors, which can be enabled to ensure stable input levels in different electrical environments.
#### 2.2.2 Timers
- **Timer0**: This is an 8 - bit timer/counter. It can be used for a variety of timing functions, such as generating time delays, measuring time intervals, and implementing simple real - time control algorithms. Timer0 can be clocked by either an internal oscillator or an external clock source.
- **Timer1**: A 16 - bit timer/counter, Timer1 offers higher precision and longer time - counting capabilities compared to Timer0. It can be used in applications that require more accurate timing, such as in communication protocols or motor control.
#### 2.2.3 Analog - to - Digital Converter (ADC)
- The PIC12F1571 - I/MS is equipped with a 10 - bit ADC. This ADC can convert analog input signals from external sensors (such as temperature sensors, light sensors, or pressure sensors) into digital values that can be processed by the microcontroller. With 10 - bit resolution, it can distinguish between 1024 different analog levels, providing relatively high accuracy for analog - to - digital conversion.
#### 2.2.4 Comparators
- It has built - in comparators that can compare two analog input voltages and generate a digital output based on the comparison result. Comparators are useful in applications such as voltage monitoring, level detection, and signal conditioning.
#### 2.2.5 Communication Interfaces
- **UART (Universal Asynchronous Receiver/Transmitter)**: The UART interface allows the microcontroller to communicate with other devices using asynchronous serial communication. It is commonly used for communication with computers, sensors, and other microcontrollers over a serial link.
- **
Images for reference

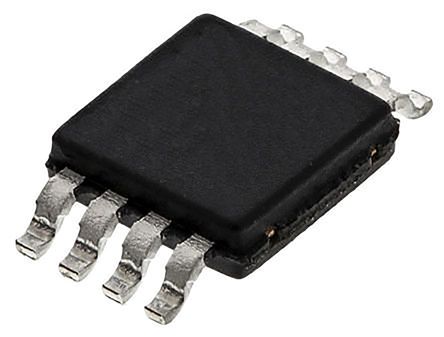

8-MSOP
