# Introduction to the P89LPC932A1 Product Series

## 1. Overview
The P89LPC932A1 is a highly versatile and feature - rich microcontroller product series developed by NXP Semiconductors. It belongs to the 80C51 microcontroller family, which is well - known for its wide range of applications in the embedded systems domain. This series is designed to offer a cost - effective and high - performance solution for various industrial, consumer, and automotive applications.

## 2. Key Features

### 2.1 CPU and Memory
- **CPU Core**: The P89LPC932A1 is based on an enhanced 80C51 core. This core provides a high - speed instruction execution capability, allowing for efficient processing of tasks. It can operate at clock frequencies up to 20 MHz, enabling rapid data processing and real - time response in applications.
- **Flash Memory**: It comes with 8 KB of in - system programmable (ISP) Flash memory. This non - volatile memory allows for easy reprogramming of the microcontroller, which is extremely useful during the development phase and for field upgrades. The Flash memory can store the program code, making it suitable for applications that require complex algorithms and control logic.
- **Data Memory**: The device has 256 bytes of on - chip data RAM. This RAM is used for storing temporary data during program execution, such as variables, buffers, and intermediate results. It provides fast access to data, which is crucial for maintaining high - speed operation.

### 2.2 Peripherals

#### 2.2.1 General - Purpose Input/Output (GPIO)
The P89LPC932A1 offers a total of 32 general - purpose I/O pins. These pins can be configured as either input or output, providing great flexibility in interfacing with external devices. They can be used to connect sensors, actuators, displays, and other components. For example, in a home automation system, the GPIO pins can be used to control lights, read the status of door sensors, or communicate with a keypad.

#### 2.2.2 Serial Communication Interfaces
- **UART (Universal Asynchronous Receiver - Transmitter)**: It features a full - duplex UART interface, which is commonly used for serial communication with other devices. The UART can be used to communicate with computers, modems, or other microcontrollers. It supports a wide range of baud rates, allowing for flexible data transfer speeds.
- **I²C (Inter - Integrated Circuit) Bus**: The I²C interface enables the microcontroller to communicate with other I²C - compatible devices in a multi - master or multi - slave configuration. This is useful for connecting devices such as EEPROMs, sensors, and LCD controllers. The I²C bus uses a simple two - wire interface, which reduces the number of external connections and simplifies the circuit design.

#### 2.2.3 Timer/Counters
The P89LPC932A1 is equipped with three 16 - bit timer/counters. These timer/counters can be used for a variety of purposes, such as generating time delays, measuring time intervals, and generating pulse - width modulation (PWM) signals. In a motor control application, the timer/counters can be used to generate PWM signals to control the speed and direction of the motor.

#### 2.2.4 Analog - to - Digital Converter (ADC)
It has a 10 - bit ADC with up to 8 input channels. The ADC allows the microcontroller to convert analog signals from sensors (such as temperature sensors, light sensors, or pressure sensors) into digital values. This enables the microcontroller to process and analyze

Images for reference

28-PLCC,SOT261-2

28-TSSOP

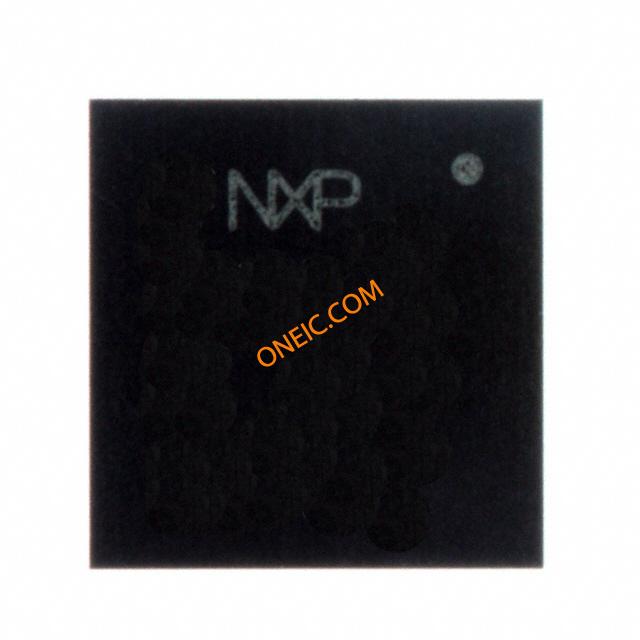

568-28-HVQFN,SOT788-1
