OPA544F

High-voltage, high-current operational amplifiers in TO-263 package

Manufacturer: ti

series introduction

# OPA544F Product Series Introduction

## 1. Overview
The OPA544F is a high - performance, high - power operational amplifier product series that has been designed to meet the demanding requirements of a wide range of applications. It combines the precision and versatility of an operational amplifier with the ability to deliver significant amounts of power, making it an ideal choice for engineers and designers working on projects that require both signal amplification and power delivery.

## 2. Key Features

### 2.1 High Output Power
One of the most prominent features of the OPA544F series is its high output power capability. It can supply up to several watts of continuous power to the load, which is crucial in applications such as audio amplifiers, power supplies, and motor control. This high - power output allows the amplifier to drive low - impedance loads effectively without significant signal degradation.

### 2.2 Wide Supply Voltage Range
The OPA544F can operate over a wide supply voltage range. This flexibility enables it to be used in various power supply configurations, from low - voltage battery - powered systems to high - voltage industrial applications. The wide supply voltage range also contributes to the amplifier's ability to handle large input and output signal swings, making it suitable for applications that require high dynamic range.

### 2.3 Low Distortion
In applications where signal fidelity is of utmost importance, the low distortion characteristics of the OPA544F series are a significant advantage. The amplifier is designed to minimize harmonic distortion and inter - modulation distortion, ensuring that the output signal accurately reproduces the input signal. This makes it well - suited for audio applications, where even small amounts of distortion can degrade the sound quality.

### 2.4 Thermal Protection
To prevent damage due to overheating, the OPA544F is equipped with built - in thermal protection circuitry. When the internal temperature of the amplifier exceeds a certain threshold, the thermal protection mechanism automatically reduces the output power or shuts down the amplifier to prevent further temperature rise. This feature enhances the reliability and longevity of the amplifier, especially in high - power applications where heat dissipation is a concern.

### 2.5 Short - Circuit Protection
The series also includes short - circuit protection, which safeguards the amplifier from damage in case of a short - circuit condition at the output. When a short - circuit is detected, the amplifier limits the output current to a safe level, preventing excessive power dissipation and potential damage to the device.

## 3. Applications

### 3.1 Audio Amplification
In audio systems, the OPA544F can be used as a power amplifier to drive speakers. Its high output power and low distortion characteristics ensure that the audio signal is amplified accurately and reproduced with high fidelity. Whether it is a home audio system, a professional sound reinforcement system, or a car audio system, the OPA544F can provide the necessary power and performance.

### 3.2 Power Supplies
The OPA544F can be incorporated into power supply designs to regulate and amplify the output voltage. Its ability to handle high power and wide supply voltage ranges makes it suitable for both linear and switching power supplies. It can be used to drive power transistors or other high - power components in the power supply circuit, providing stable and efficient power delivery.

### 3.3 Motor Control
In motor control applications, the OPA544F can be used to drive DC motors. It can provide the necessary current and voltage to control the speed and torque of the motor. The amplifier's short - circuit and thermal protection features are particularly useful in motor control, as motors can draw large currents and generate significant heat during operation.

### 3.4 Test and Measurement Equipment
In test and measurement equipment, the OPA544F can be used to amplify weak signals

Images for reference

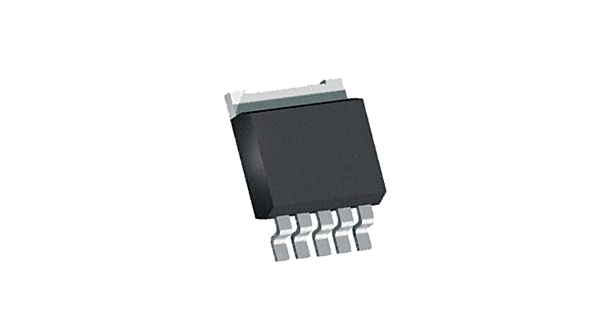

D2PAK5

D2PAK5

Image Preview

Image Preview

Image Preview

Image Preview

Datasheets

Partlist

OPA544F
OPA544F/500
OPA544F500
OPA544F/500G3
OPA544F500G3
OPA544FKTTT
OPA544FKTTT/BKN
OPA544FKTTTG3
OPA544FKTWT
