General-purpose operational amplifiers in TO-220 package for high-voltage applications
Manufacturer: ['rochester', 'analog-devices', 'ti']
# OPA453TA Product Series Introduction
## 1. Overview
The OPA453TA product series represents a cutting - edge line of operational amplifiers (op - amps) engineered to meet the most demanding requirements of modern electronic systems. These op - amps are designed with a focus on high performance, reliability, and versatility, making them suitable for a wide range of applications across multiple industries.
## 2. Key Features
### 2.1 High Precision
- **Low Offset Voltage**: The OPA453TA series offers extremely low input offset voltage. This characteristic is crucial in applications where accurate signal amplification is required, such as in precision measurement equipment. A low offset voltage ensures that the output of the op - amp closely represents the input signal, minimizing errors and improving the overall accuracy of the system.
- **Low Drift**: With low temperature and time - dependent drift, the op - amps maintain their performance stability over a wide range of operating conditions. This is essential for long - term, continuous operation in environments where temperature variations are common, like industrial control systems.
### 2.2 High Gain and Bandwidth
- **High Open - Loop Gain**: The op - amps in the OPA453TA series feature a high open - loop gain, which allows for large signal amplification. This high gain enables the op - amp to accurately amplify small input signals, making it suitable for applications such as sensor signal conditioning, where weak signals from sensors need to be boosted to a usable level.
- **Wide Bandwidth**: A wide bandwidth ensures that the op - amp can handle high - frequency signals without significant attenuation. This makes the OPA453TA series ideal for applications in communication systems, where high - speed signal processing is required.
### 2.3 Low Noise
- **Low Input Noise**: The series is designed to have low input noise, which is critical in applications where the input signal is weak. By minimizing the noise added to the input signal, the op - amp can provide a clean and accurate output, improving the signal - to - noise ratio (SNR) of the system. This is particularly important in audio applications, such as microphone pre - amplifiers, where a high SNR is essential for high - quality sound reproduction.
### 2.4 High Output Current Capability
- **High Sink and Source Current**: The OPA453TA op - amps can sink and source relatively high currents. This feature allows them to drive heavy loads directly, eliminating the need for additional buffer stages in many applications. For example, in power management circuits or motor control applications, the ability to drive high - current loads is essential for proper system operation.
### 2.5 Rail - to - Rail Operation
- **Input and Output**: The op - amps support rail - to - rail input and output operation. This means that the input voltage range can extend from the negative supply rail to the positive supply rail, and the output voltage can swing close to both supply rails. Rail - to - rail operation maximizes the dynamic range of the op - amp, making it suitable for applications where the input and output signals need to cover a wide voltage range, such as in battery - powered devices.
## 3. Package and Thermal Characteristics
### 3.1 Package Options
The OPA453TA series is available in a variety of industry - standard packages, such as SOIC (Small Outline Integrated Circuit) and TSSOP (Thin Shrink Small Outline Package). These packages offer different pin counts and footprints, allowing designers to choose the most suitable package for their specific application requirements. The packages are also designed for easy PCB (Printed Circuit Board) mounting, facilitating the integration of the op - amps into electronic systems.
### 3.2 Thermal Performance
The op - amps are designed with good thermal characteristics to ensure

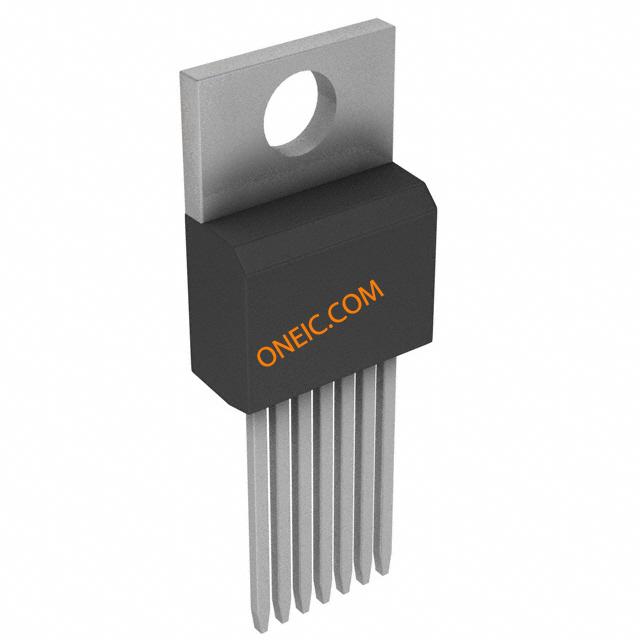

TO-220-7 (Straight Leads)_4040251^B

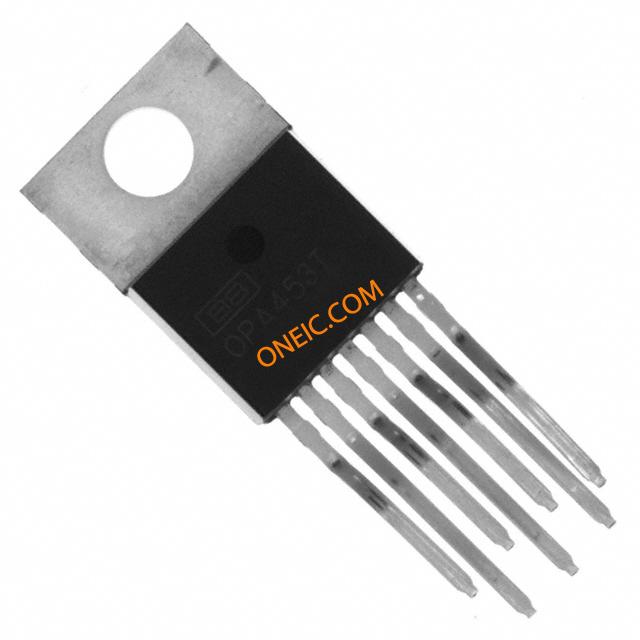

OPA453TA-1
TO-220-7 (Bent and Staggered Leads)_4040233^C
