OPA4364AIPWT
Quad CMOS operational amplifiers with rail-to-rail input/output for general-purpose use
Manufacturer： ['rochester', 'ti']
series introduction
# OPA4364AIPWT Product Series Introduction
## 1. Overview
The OPA4364AIPWT is a remarkable product series within the realm of operational amplifiers (op - amps) offered by Texas Instruments. These op - amps are designed to meet the diverse and demanding requirements of modern electronic circuits, providing high - performance signal conditioning and amplification solutions across a wide range of applications.
## 2. Key Features
### 2.1 Low Power Consumption
One of the standout features of the OPA4364AIPWT is its extremely low power consumption. In today's energy - conscious world, this is a crucial advantage. It allows for the design of battery - powered devices that can operate for extended periods without frequent battery replacements. The low power draw also helps in reducing heat generation, which is beneficial for the overall reliability and longevity of the circuit.
### 2.2 Rail - to - Rail Input and Output
The op - amps in the OPA4364AIPWT series support rail - to - rail input and output operation. This means that they can handle input signals that range from the negative power supply rail to the positive power supply rail, and can also produce output signals that can swing close to these rails. This feature is particularly useful in applications where the full range of the power supply voltage needs to be utilized, such as in sensor interfaces and portable audio systems.
### 2.3 High - Speed Performance
Despite its low - power nature, the OPA4364AIPWT offers high - speed performance. It has a relatively high gain - bandwidth product, which enables it to accurately amplify high - frequency signals. This makes it suitable for applications such as high - speed data acquisition systems, communication circuits, and video signal processing.
### 2.4 Low Offset Voltage and Drift
The series exhibits low offset voltage, which is the voltage difference between the two input terminals when the output is supposed to be zero. Additionally, it has low offset voltage drift over temperature. These characteristics ensure high accuracy in signal amplification, especially in precision measurement applications where even small errors can lead to significant inaccuracies in the final results.
### 2.5 Multiple Channels
The OPA4364AIPWT comes in a quad - op - amp configuration, meaning that it contains four independent operational amplifiers in a single package. This integration reduces the board space required and simplifies the circuit design, making it an ideal choice for applications that require multiple op - amps, such as multi - channel audio systems, sensor arrays, and industrial control systems.
## 3. Package and Pinout
The OPA4364AIPWT is available in a small - outline package (SOIC), which is a popular choice for surface - mount technology (SMT) applications. The package provides good thermal performance and mechanical stability. The pinout of the device is carefully designed to facilitate easy connection to external components. Each op - amp within the quad - package has its own set of input and output pins, along with power supply pins that are shared among the four amplifiers. This layout allows for straightforward circuit board layout and reduces the chances of signal interference between the different channels.
## 4. Applications
### 4.1 Sensor Interfaces
In sensor interface circuits, the OPA4364AIPWT can be used to amplify the weak signals generated by sensors such as temperature sensors, pressure sensors, and light sensors. Its low offset voltage and high accuracy ensure that the sensor readings are reliable. The rail - to - rail operation allows it to work effectively with sensors that have a wide range of output voltages.
### 4.2 Portable Audio Systems
For portable audio devices like smartphones, tablets, and portable music players, the low - power consumption of the OPA4364AIPWT is a
Images for reference

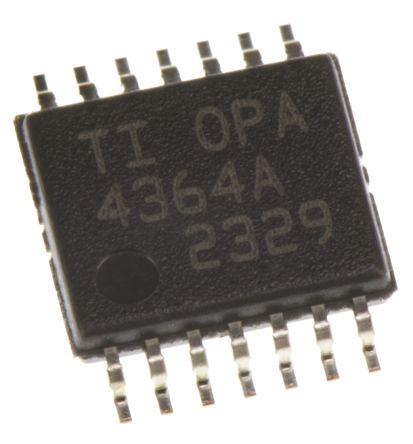

14-TSSOP
