# OMAP3530DCBC Product Series Introduction
## 1. Overview
The OMAP3530DCBC product series represents a significant advancement in the field of system - on - a - chip (SoC) technology. Developed by Texas Instruments, these devices are engineered to offer a high - performance, power - efficient solution for a wide range of embedded applications. The OMAP3530DCBC combines a powerful ARM Cortex - A8 processor with a variety of integrated peripherals, making it suitable for applications that demand both processing power and rich functionality.
## 2. Key Features
### 2.1 Processor Performance
- **ARM Cortex - A8 Core**: At the heart of the OMAP3530DCBC is an ARM Cortex - A8 processor core that can operate at speeds up to 720 MHz. This high - clock - speed core provides excellent processing capabilities, enabling the execution of complex algorithms, multitasking, and running of advanced operating systems such as Linux.
- **Neon SIMD Engine**: The integrated Neon single - instruction, multiple - data (SIMD) engine enhances the device's multimedia and signal - processing performance. It can accelerate tasks like video decoding, image processing, and audio encoding, allowing for smooth playback of high - definition multimedia content.
### 2.2 Graphics and Display
- **PowerVR SGX Graphics Accelerator**: The OMAP3530DCBC is equipped with a PowerVR SGX graphics accelerator. This accelerator supports OpenGL ES 2.0 and OpenVG 1.1 standards, enabling the creation of immersive 3D graphics and smooth 2D user interfaces. It is ideal for applications such as gaming consoles, in - vehicle infotainment systems, and industrial human - machine interfaces (HMIs).
- **Display Interfaces**: The device offers multiple display interfaces, including LCD controllers that support a wide range of display resolutions and types. This allows for easy integration with various displays, from small - sized TFT LCDs to large - format high - definition panels.
### 2.3 Multimedia Capabilities
- **Video and Audio Codecs**: It comes with built - in video and audio codecs that support popular formats such as H.264, MPEG - 4, and MP3. This enables seamless playback and encoding of multimedia content, making it suitable for media players, set - top boxes, and video surveillance systems.
- **Camera Interface**: The OMAP3530DCBC features a camera interface that can support high - resolution cameras. It allows for real - time image capture and processing, which is useful in applications like digital cameras, security cameras, and barcode scanners.
### 2.4 Connectivity
- **USB Interfaces**: The device includes USB 2.0 host and device interfaces, which provide high - speed data transfer capabilities. This allows for easy connection to external USB devices such as keyboards, mice, storage devices, and printers.
- **Ethernet Interface**: An integrated Ethernet interface enables network connectivity, making it possible to connect the device to local area networks (LANs) or the Internet. This is essential for applications that require remote access, data sharing, or cloud - based services.
- **UART, SPI, and I2C Interfaces**: These standard serial interfaces are available on the OMAP3530DCBC, allowing for communication with other external devices such as sensors, actuators, and microcontrollers.
### 2.5 Power Management
- **Low - Power Modes**: The OMAP3530DCBC is designed with multiple low - power modes, including standby and sleep modes. These modes help to reduce power consumption when the device is not in active use, extending the battery life of portable devices and reducing energy costs in non - portable applications.
Images for reference

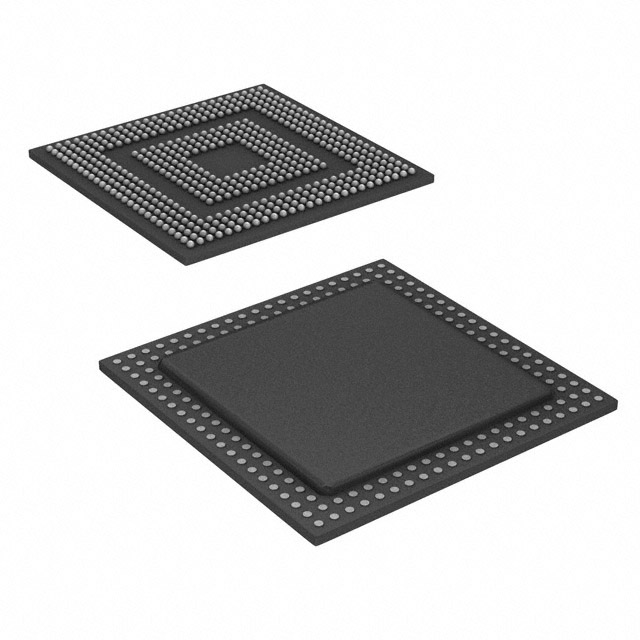

515-FCBGA-CBC
