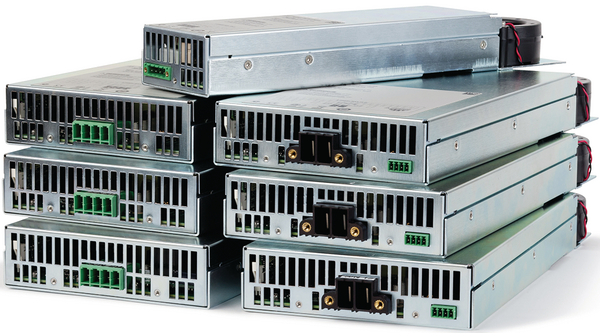

# Introduction to the N6756A Product Series

## Overview
The N6756A is a cutting - edge product series within the realm of electronic test and measurement equipment. Developed by a leading manufacturer in the industry, this series is designed to meet the diverse and demanding power - related testing needs of engineers, researchers, and technicians across various sectors such as telecommunications, aerospace, automotive, and consumer electronics.

## Key Features

### High - Precision Power Output
The N6756A offers highly accurate and stable power output. It can precisely deliver a wide range of voltages and currents, with voltage accuracy reaching up to a very low tolerance level. This high precision is crucial for applications where even the slightest deviation in power supply can lead to inaccurate test results or malfunctions in the device under test. For example, in semiconductor testing, where the performance of tiny electronic components is being evaluated, the accurate power delivery of the N6756A ensures reliable and repeatable test outcomes.

### Multiple Output Channels
This product series is equipped with multiple output channels. Each channel can be independently controlled, allowing users to simultaneously supply different power levels to multiple components or circuits within a single test setup. This multi - channel capability significantly enhances testing efficiency, as it eliminates the need for multiple single - channel power supplies. For instance, in a complex circuit board testing scenario, different sections of the board may require different power voltages and currents, and the N6756A can easily accommodate these requirements through its independent output channels.

### Programmable Functionality
The N6756A comes with comprehensive programmable features. Users can program the power supply to generate specific voltage and current profiles over time. This is extremely useful for simulating real - world operating conditions. For example, in automotive electronics testing, the power supply can be programmed to mimic the voltage fluctuations that occur in a vehicle's electrical system during start - up, acceleration, and normal driving. The programming can be done through a user - friendly front - panel interface or via remote control using standard communication interfaces such as USB, LAN, or GPIB.

### Advanced Protection Mechanisms
To safeguard both the device under test and the power supply itself, the N6756A is equipped with a variety of advanced protection mechanisms. These include over - voltage protection (OVP), over - current protection (OCP), over - power protection (OPP), and under - voltage lockout (UVLO). In case of any abnormal power conditions, such as a sudden surge in current or voltage, the protection circuits will immediately activate and shut down the output to prevent damage. This not only protects valuable test equipment but also ensures the safety of the testing environment.

### Wide Operating Range
The N6756A has a wide operating range in terms of both voltage and current. It can handle a broad spectrum of power requirements, from low - power applications such as testing small sensors to high - power applications like evaluating power - hungry industrial motors. This wide operating range makes the N6756A a versatile tool that can be used in a wide variety of testing scenarios without the need for multiple power supplies with different ratings.

## Applications

### Electronics Manufacturing
In the electronics manufacturing industry, the N6756A is used for production testing of printed circuit boards (PCBs) and electronic components. It can quickly and accurately test the power consumption and performance of these devices, ensuring that they meet the required specifications before being shipped to customers. The multi - channel and programmable features allow for efficient testing of complex PCBs with multiple power domains.

### Research and Development
Researchers in academic institutions and industrial R & D labs rely on the N6756A for their power - related experiments. Whether it's developing new battery technologies, testing the performance of emerging semiconductor materials, or studying the power consumption of new electronic devices, the high - precision and
