MX29LV160DBTI-70G
16Mbit parallel flash memory ICs in 48-pin TSOP package
Manufacturer： macronix
series introduction
# Introduction to the MX29LV160DBTI - 70G Product Series
## 1. Overview
The MX29LV160DBTI - 70G is a high - performance flash memory product series that plays a crucial role in modern electronic systems. It belongs to the NOR flash memory family, which is well - known for its fast read access times and byte - level random access capabilities. This product series is designed to meet the diverse storage requirements of various applications, from consumer electronics to industrial control systems.
## 2. Key Features
### 2.1 Memory Capacity
The MX29LV160DBTI - 70G offers a generous memory capacity of 16 megabits (2 megabytes). This ample storage space allows it to store a significant amount of data, such as program code, configuration data, and user - specific information. It is suitable for applications that require the storage of relatively large amounts of non - volatile data, like firmware updates in embedded systems.
### 2.2 Fast Access Time
With a specified access time of 70 nanoseconds, this flash memory series provides rapid data retrieval. The fast access time is essential for applications where quick response is required, such as real - time systems. For example, in a microcontroller - based system, the fast access to program code stored in the MX29LV160DBTI - 70G enables the microcontroller to execute instructions promptly, reducing overall system latency.
### 2.3 Low Power Consumption
The MX29LV160DBTI - 70G is designed with power efficiency in mind. It consumes relatively low power during both active and standby modes. This is particularly important for battery - powered devices, such as portable media players and handheld measurement instruments. By minimizing power consumption, the product helps to extend the battery life of these devices, enhancing their usability and portability.
### 2.4 Byte - Level Erase and Programming
One of the significant advantages of this product series is its ability to perform byte - level erase and programming operations. This feature provides greater flexibility compared to block - level operations. Developers can selectively update or erase specific bytes of data without affecting the entire block. It is useful in applications where only small portions of data need to be modified, such as in data logging systems where individual data records may need to be updated.
### 2.5 High Endurance
The MX29LV160DBTI - 70G offers a high endurance rating, typically capable of withstanding a large number of program/erase cycles. This makes it suitable for applications that involve frequent data updates, such as in automotive electronics where the flash memory may be used to store diagnostic information that is continuously updated during the vehicle's operation.
## 3. Package and Pin Configuration
The MX29LV160DBTI - 70G is available in a specific package that is designed for easy integration into printed circuit boards (PCBs). The package provides mechanical protection for the memory chip and also ensures proper electrical connections. The pin configuration is carefully designed to interface with other components in the system, such as microcontrollers, buses, and power supplies. The pins are labeled clearly, making it straightforward for engineers to connect the flash memory to the rest of the circuit.
## 4. Applications
### 4.1 Consumer Electronics
In consumer electronics, the MX29LV160DBTI - 70G can be used in devices such as digital cameras, MP3 players, and smartwatches. In digital cameras, it can store firmware for camera operation, image processing algorithms, and user - defined settings. In MP3 players, it stores music files and the player's operating system. Smartwatches can use it to store application data, user preferences, and
Images for reference

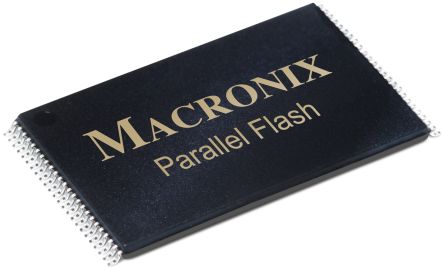

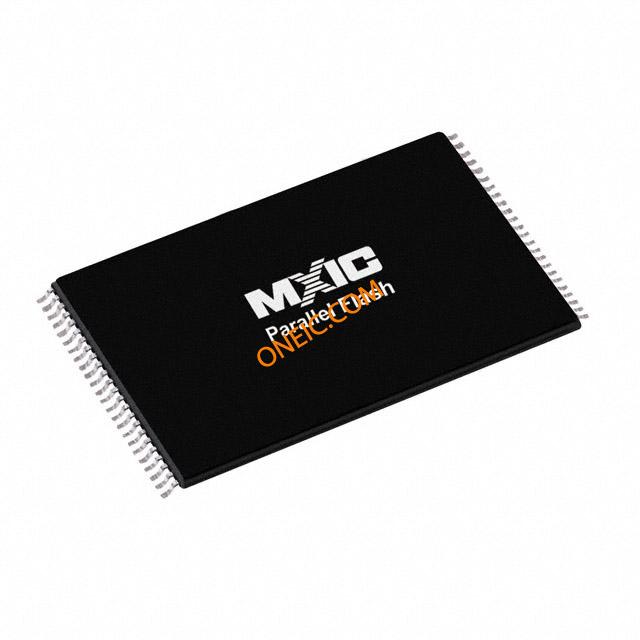

48-TFSOP Pkg
