# Introduction to the MSP430F5638IPZ Product Series

## 1. Overview
The MSP430F5638IPZ belongs to the MSP430 microcontroller family developed by Texas Instruments. This product series is renowned for its high - performance, low - power operation, and rich set of integrated peripherals, making it an ideal choice for a wide range of applications in various industries.

## 2. Key Features

### 2.1 Low - Power Performance
- **Multiple Power Modes**: The MSP430F5638IPZ offers several power modes, including active mode, standby mode, and various sleep modes. In standby mode, the microcontroller can consume extremely low power while still maintaining critical system states. For example, in some low - power scenarios, it can draw as little as a few microamps, which is crucial for battery - powered applications such as wearable devices, wireless sensors, and remote monitoring systems.
- **Dynamic Power Management**: It has the ability to dynamically adjust its power consumption based on the application's requirements. The microcontroller can quickly transition between different power modes, allowing it to respond to real - time events while minimizing power waste.

### 2.2 High - Performance CPU
- **16 - Bit RISC Architecture**: The MSP430F5638IPZ is equipped with a 16 - bit Reduced Instruction Set Computing (RISC) CPU. This architecture provides a high level of code efficiency, enabling developers to write compact and fast - executing programs. The CPU can execute instructions in a single clock cycle for many operations, resulting in high processing speeds.
- **High Clock Speeds**: It can operate at relatively high clock frequencies, up to 25 MHz. This allows the microcontroller to handle complex tasks such as data processing, algorithm execution, and real - time control with ease.

### 2.3 Integrated Peripherals

#### 2.3.1 Analog - to - Digital Converter (ADC)
- **High - Resolution Conversion**: The MSP430F5638IPZ features a high - resolution ADC. It can perform 12 - bit or 16 - bit analog - to - digital conversions, which is suitable for applications that require accurate measurement of analog signals, such as sensor data acquisition in environmental monitoring systems or industrial control applications.
- **Multiple Input Channels**: There are multiple input channels available, allowing the microcontroller to sample multiple analog signals simultaneously. This is useful in applications where multiple sensors need to be monitored, such as in a multi - parameter environmental sensor node.

#### 2.3.2 Timers
- **Multiple Timer Modules**: It comes with several timer modules, including basic timers and advanced capture - compare timers. These timers can be used for a variety of purposes, such as generating accurate time delays, measuring time intervals, and controlling PWM (Pulse Width Modulation) signals. For example, in motor control applications, the timers can be used to generate PWM signals to control the speed and direction of the motor.

#### 2.3.3 Communication Interfaces
- **UART, SPI, and I²C**: The MSP430F5638IPZ supports popular communication interfaces such as Universal Asynchronous Receiver - Transmitter (UART), Serial Peripheral Interface (SPI), and Inter - Integrated Circuit (I²C). These interfaces enable the microcontroller to communicate with other devices, such as sensors, displays, and communication modules. For instance, it can communicate with an external temperature sensor via the I²C interface to acquire temperature data.

## 3. Memory

### 3.1 Flash Memory
- **Large - Capacity Storage**: The MSP430F5638IPZ is

Images for reference

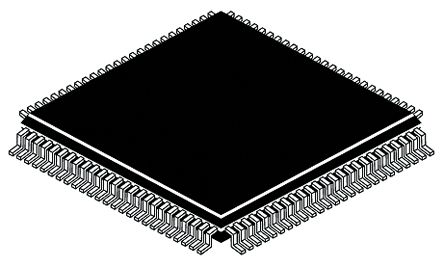

100-LQFP
