# Introduction to the MSP430F4783IPZ Product Series

## 1. Overview
The MSP430F4783IPZ is part of Texas Instruments' highly regarded MSP430 microcontroller family. Renowned for its ultra - low power consumption, high performance, and rich peripheral integration, this product series is designed to meet the diverse needs of various embedded applications. The "IPZ" in the part number typically refers to a specific package type, which in this case is a 100 - pin TQFP (Thin Quad Flat Package), offering a compact and reliable form factor for circuit board design.

## 2. Key Features

### 2.1 Processor Core
- **16 - bit RISC Architecture**: The MSP430F4783IPZ is powered by a 16 - bit RISC (Reduced Instruction Set Computing) CPU. This architecture provides a good balance between processing power and code efficiency. It allows for fast execution of instructions, enabling the microcontroller to handle complex tasks with ease. The 16 - bit data path also means that it can process larger data chunks at once compared to 8 - bit microcontrollers, which is beneficial for applications that require high - speed data processing.
- **Low - Power Modes**: One of the standout features of the MSP430 family is its extensive set of low - power modes. The MSP430F4783IPZ offers multiple low - power modes, including standby and shutdown modes. In standby mode, the microcontroller can quickly wake up from a low - power state to perform tasks, consuming minimal power during idle periods. In shutdown mode, power consumption is reduced to an extremely low level, making it ideal for battery - powered applications where power conservation is crucial.

### 2.2 Memory
- **Flash Memory**: It comes with a generous amount of on - chip Flash memory. The Flash memory is non - volatile, which means that the program code stored in it is retained even when the power is turned off. This allows for easy reprogramming of the microcontroller during development and in - field updates. The large Flash memory capacity enables the storage of complex application code, including algorithms, drivers, and user interfaces.
- **RAM**: The MSP430F4783IPZ also has a sufficient amount of Random Access Memory (RAM). RAM is used for temporary data storage during program execution. It allows the microcontroller to quickly access and manipulate data, improving the overall performance of the system. The available RAM is suitable for storing variables, buffers, and intermediate results during data processing.

### 2.3 Peripherals

#### 2.3.1 Timers
- **Multiple Timers**: The microcontroller is equipped with multiple timers, including watchdog timers, basic timers, and capture/compare timers. Watchdog timers are used to monitor the operation of the microcontroller and reset it if it malfunctions or gets stuck in an infinite loop. Basic timers can be used for simple time - keeping tasks, such as generating time delays. Capture/compare timers are useful for applications that require precise timing, such as pulse width modulation (PWM) for motor control or generating accurate time intervals for sensor sampling.

#### 2.3.2 Communication Interfaces
- **UART (Universal Asynchronous Receiver/Transmitter)**: The UART interface allows the MSP430F4783IPZ to communicate with other devices using asynchronous serial communication. It is commonly used for connecting to external devices such as sensors, displays, and other microcontrollers. UART communication is simple and widely supported, making it easy to integrate the microcontroller into existing systems.
- **SPI (Serial Peripheral Interface)**: SPI is a synchronous serial communication interface that provides high

Images for reference

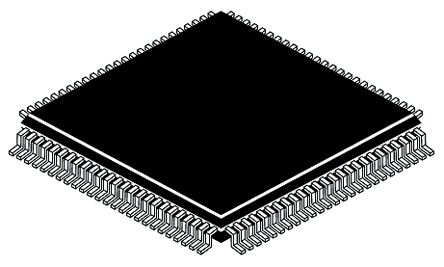

100-LQFP
