MSP430F47197IPZ
Ultra-low-power 16-bit microcontrollers with 120KB flash memory
Manufacturer： ['analog-devices', 'ti']
series introduction
# Introduction to the MSP430F47197IPZ Product Series
## 1. Overview
The MSP430F47197IPZ belongs to the MSP430 family of ultra - low - power microcontrollers developed by Texas Instruments. This product series is designed to meet the diverse requirements of various embedded applications, offering a combination of high performance, low power consumption, and rich peripheral features.
## 2. Key Features
### 2.1 Processor Core
- **MSP430 CPU**: It is based on a 16 - bit RISC (Reduced Instruction Set Computing) architecture. This architecture provides a high - level of code efficiency, allowing developers to write compact and fast - executing code. The 16 - bit data path enables efficient processing of arithmetic and logical operations, making it suitable for applications that require real - time data processing.
- **High - Speed Operation**: The MSP430F47197IPZ can operate at a maximum clock speed of up to 16 MHz. This high clock speed enables the microcontroller to handle complex tasks such as signal processing, communication protocol handling, and control algorithms in a timely manner.
### 2.2 Memory
- **Flash Memory**: It is equipped with 128 KB of in - system programmable Flash memory. This non - volatile memory allows developers to store the application code and data. The in - system programmability feature enables easy firmware updates, which is crucial for product maintenance and feature enhancements over the product's lifecycle.
- **RAM**: There is 8 KB of random - access memory (RAM). The RAM is used for storing temporary data during program execution, such as variables, buffers, and stack space. Sufficient RAM ensures smooth operation of the application, especially when dealing with large amounts of data or complex algorithms.
### 2.3 Low - Power Operation
- **Multiple Power Modes**: The MSP430F47197IPZ offers several low - power modes, including Active mode, Standby mode, and various levels of Sleep modes. In Active mode, the microcontroller can perform normal operations at full speed. In Standby mode, most of the peripherals are disabled, and the CPU is halted, consuming only a small amount of power. The Sleep modes further reduce power consumption by shutting down different parts of the chip, allowing the microcontroller to conserve energy when idle.
- **Ultra - Low - Power Consumption**: With its advanced power management features, the MSP430F47197IPZ can achieve extremely low power consumption. This makes it ideal for battery - powered applications such as portable medical devices, wireless sensors, and smart meters, where long battery life is a critical requirement.
### 2.4 Peripherals
#### 2.4.1 Timers
- **Multiple Timers**: It includes multiple timers, such as the Timer_A and Timer_B modules. These timers can be used for a variety of purposes, including generating accurate time delays, PWM (Pulse Width Modulation) signal generation for motor control or LED dimming, and event counting.
- **Flexible Configuration**: The timers offer flexible configuration options, allowing developers to choose different clock sources, counting modes, and interrupt settings. This flexibility enables the microcontroller to adapt to different application requirements.
#### 2.4.2 Communication Interfaces
- **UART (Universal Asynchronous Receiver - Transmitter)**: The UART interface provides a simple and widely used method for serial communication. It can be used to communicate with other devices such as computers, sensors, and actuators. The UART supports full - duplex communication, allowing data to be sent and received simultaneously.
- **SPI (Serial Peripheral Interface)**: The SPI interface is a high -
Images for reference

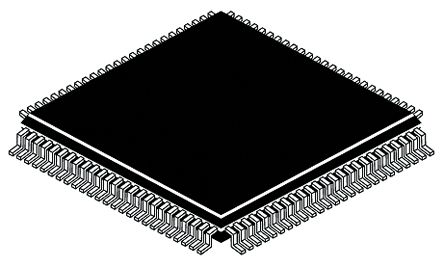

100-LQFP
