MSP430F2252IDA
16-bit ultra-low-power microcontrollers with flash memory in TSSOP packages
Manufacturer： ['rochester', 'ti']
series introduction
# Introduction to the MSP430F2252IDA Product Series
## 1. Overview
The MSP430F2252IDA is part of Texas Instruments' highly regarded MSP430 microcontroller family. This product series is designed to offer a powerful, energy - efficient, and versatile solution for a wide range of embedded applications. With its unique combination of features, it has become a popular choice among engineers and developers in various industries.
## 2. Key Features
### 2.1 Low - Power Performance
One of the standout features of the MSP430F2252IDA is its exceptional low - power consumption. It operates on a 1.8 - 3.6V power supply, which makes it suitable for battery - powered applications. The device has multiple low - power modes, including standby and shutdown modes. In standby mode, it can retain all register and memory contents while consuming only a minimal amount of power. This low - power design allows for extended battery life in portable devices, reducing the need for frequent battery replacements.
### 2.2 High - Performance CPU
The MSP430F2252IDA is equipped with a 16 - bit RISC (Reduced Instruction Set Computing) CPU. This CPU architecture provides high - speed processing capabilities, allowing for efficient execution of complex algorithms. It has a large set of instructions that can perform arithmetic, logical, and data transfer operations quickly. The CPU also features a fast interrupt response time, which is crucial for real - time applications where immediate action is required upon the occurrence of an event.
### 2.3 Memory Configuration
This microcontroller comes with a 16KB of in - system programmable Flash memory. Flash memory is non - volatile, which means that the program code stored in it is retained even when the power is turned off. This allows for easy reprogramming of the device during development and in the field. Additionally, it has 1KB of RAM (Random Access Memory), which provides sufficient space for data storage and manipulation during program execution.
### 2.4 Peripherals
- **Timer Modules**: The MSP430F2252IDA includes multiple timer modules, such as Timer_A and Timer_B. These timers can be used for a variety of purposes, including generating accurate time delays, pulse width modulation (PWM) for motor control, and capturing external events. The timers offer different operating modes and can be configured to meet the specific requirements of the application.
- **USCI (Universal Serial Communication Interface)**: It has a USCI module that supports both UART (Universal Asynchronous Receiver - Transmitter) and SPI (Serial Peripheral Interface) communication protocols. UART is commonly used for serial communication with other devices, such as computers or sensors, while SPI is used for high - speed communication between the microcontroller and peripheral devices like external memory chips or display modules.
- **ADC (Analog - to - Digital Converter)**: The built - in 10 - bit ADC allows the microcontroller to convert analog signals from sensors into digital values. This is useful for applications that require the measurement of physical quantities such as temperature, pressure, or light intensity. The ADC can be configured to sample multiple input channels, providing flexibility in data acquisition.
## 3. Applications
### 3.1 Portable Medical Devices
The low - power consumption and high - performance capabilities of the MSP430F2252IDA make it an ideal choice for portable medical devices. For example, in a wearable heart rate monitor, the microcontroller can continuously monitor the heart rate data from a sensor, process the data, and transmit it to a smartphone or other monitoring device. The long battery life ensures that the device can operate for extended periods without frequent charging.
### 3.
Images for reference

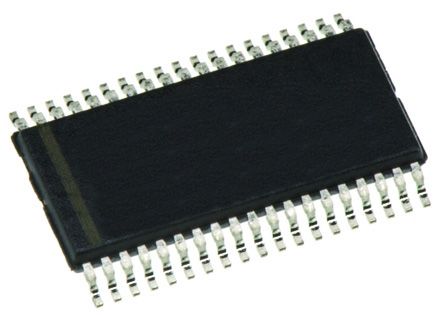

38-TSSOP
