MPC880CZP66
High-performance 66MHz microprocessors in 357-pin BGA packages
Manufacturer： ['freescale', 'nxp']
series introduction
# Introduction to the MPC880CZP66 Product Series
## 1. Overview
The MPC880CZP66 product series represents a significant advancement in embedded computing technology. Developed to meet the diverse and demanding requirements of modern industrial, networking, and communication applications, these processors offer a unique combination of high - performance computing, low power consumption, and rich peripheral integration.
## 2. Key Features
### 2.1 Processor Core
- **PowerPC Architecture**: The MPC880CZP66 is based on the PowerPC architecture, which is well - known for its high - performance and efficient instruction execution. This architecture provides a solid foundation for running complex operating systems and applications, enabling seamless multitasking and real - time processing.
- **66 MHz Clock Speed**: With a clock speed of 66 MHz, the processor can handle a wide range of computational tasks with relative ease. Whether it's data processing, algorithm execution, or system control, the 66 MHz clock ensures that operations are carried out in a timely manner, reducing latency and improving overall system responsiveness.
### 2.2 Memory Management
- **Integrated Memory Controller**: The series comes with an integrated memory controller that simplifies the memory interface design. It supports a variety of memory types, including SRAM and DRAM, allowing for flexible memory configuration based on the specific application requirements.
- **Memory Protection**: To ensure system stability and security, the MPC880CZP66 features memory protection mechanisms. These mechanisms prevent unauthorized access to memory regions, protecting critical system data and code from corruption or interference.
### 2.3 Peripheral Interfaces
- **Serial Communication**: Multiple serial communication interfaces are available, such as UARTs (Universal Asynchronous Receiver - Transmitter). These interfaces are essential for communicating with external devices like sensors, modems, and other serial - based peripherals. They support various baud rates, enabling seamless data transfer over different distances and communication protocols.
- **Ethernet Interface**: An integrated Ethernet interface is provided, which is crucial for networking applications. It allows the MPC880CZP66 - based systems to connect to local area networks (LANs) or wide area networks (WANs), facilitating data exchange, remote monitoring, and control.
- **DMA (Direct Memory Access) Controller**: The DMA controller enhances data transfer efficiency by allowing data to be transferred directly between memory and peripherals without the intervention of the CPU. This reduces the CPU load, enabling it to focus on other critical tasks and improving overall system performance.
### 2.4 Low Power Consumption
- **Power - Saving Modes**: The MPC880CZP66 series is designed with power - saving modes that can be activated based on the system's workload. In idle or low - activity periods, the processor can enter these modes to reduce power consumption significantly. This is particularly important for battery - powered devices or applications where energy efficiency is a key concern.
## 3. Applications
### 3.1 Industrial Automation
- **Machine Control**: In industrial automation systems, the MPC880CZP66 can be used to control various machines and equipment. Its real - time processing capabilities and rich peripheral interfaces make it suitable for tasks such as motion control, process monitoring, and feedback control.
- **Data Acquisition**: The processor can be employed in data acquisition systems to collect and process data from sensors in industrial environments. It can handle large amounts of data in real - time, ensuring accurate and timely monitoring of industrial processes.
### 3.2 Networking Equipment
- **Routers and Switches**: The integrated Ethernet interface and high - performance processing capabilities of the MPC880CZP66 make it an ideal choice for routers and switches. It can handle packet forwarding, routing algorithms

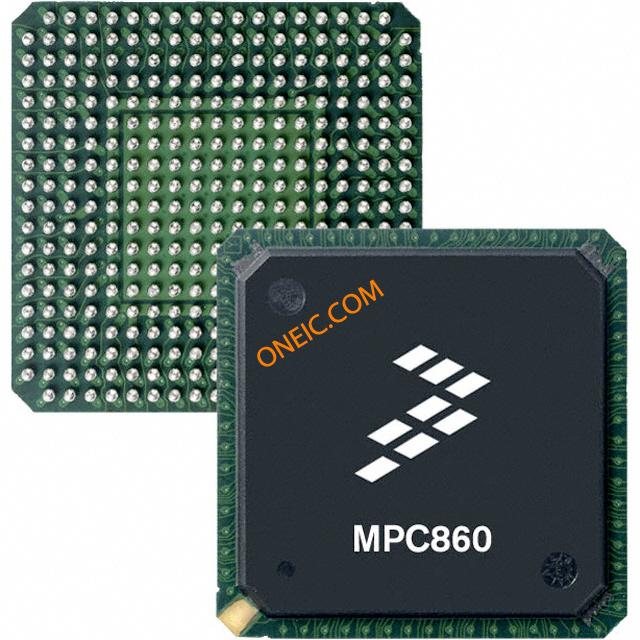

Images for reference
