MMBT5551LT1
NPN bipolar transistors in SOT-23 package for high-voltage applications
Manufacturer： ['rochester', 'onsemi', 'lrc']
series introduction
# MMBT5551LT1 Product Series Introduction
## 1. Overview
The MMBT5551LT1 is a significant product series within the realm of semiconductor components. It belongs to the family of NPN bipolar junction transistors (BJTs), which are widely used in various electronic circuits due to their ability to amplify and switch electrical signals. This series is specifically designed to offer high - performance characteristics in a compact and efficient package, making it suitable for a broad range of applications.
## 2. Key Features
### Electrical Characteristics
- **High Current Gain**: The MMBT5551LT1 transistors typically exhibit a high DC current gain (hFE). This parameter is crucial as it determines the amplification factor of the transistor. A high hFE allows for effective signal amplification in amplifier circuits, enabling small input signals to be transformed into larger output signals. For example, in audio amplifier applications, a high current gain can help in boosting weak audio signals to a level suitable for driving speakers.
- **Low Saturation Voltage**: These transistors have a low saturation voltage (VCE(sat)). When the transistor is in the saturation region (fully on), a low VCE(sat) means that there is less power dissipated across the transistor. This results in higher efficiency and less heat generation, which is especially important in power - sensitive applications such as battery - powered devices.
- **Fast Switching Speed**: The MMBT5551LT1 series offers fast switching times. This makes it ideal for use in switching circuits, where the transistor needs to rapidly turn on and off. In digital circuits, for instance, fast switching speeds ensure that the transistor can accurately follow the high - frequency digital signals, enabling proper operation of the overall circuit.
### Package and Physical Characteristics
- **SOT - 23 Package**: The transistors in the MMBT5551LT1 series are housed in a SOT - 23 (Small Outline Transistor) package. This is a surface - mount package that is very compact, with a small footprint on the printed circuit board (PCB). The SOT - 23 package is also lightweight, which is beneficial for applications where weight is a concern, such as in portable electronic devices.
- **RoHS Compliance**: The MMBT5551LT1 series is compliant with the Restriction of Hazardous Substances (RoHS) directive. This means that the product is free from certain hazardous materials such as lead, mercury, cadmium, and others. RoHS compliance is not only environmentally friendly but also ensures that the product meets the regulatory requirements of many countries and regions.
## 3. Applications
### Amplifier Circuits
- **Audio Amplifiers**: As mentioned earlier, the high current gain of the MMBT5551LT1 makes it suitable for audio amplifier applications. It can be used in pre - amplifiers to boost the weak audio signals from sources such as microphones or CD players before they are further amplified by power amplifiers.
- **RF Amplifiers**: In radio frequency (RF) circuits, the fast switching speed and good electrical characteristics of the MMBT5551LT1 allow it to be used as an RF amplifier. It can amplify RF signals in wireless communication systems, such as in mobile phones, Wi - Fi routers, and radio transceivers.
### Switching Circuits
- **Power Switching**: The low saturation voltage and fast switching speed make the MMBT5551LT1 ideal for power switching applications. It can be used to control the flow of power to different components in a circuit, such as turning on and off a load in a power supply circuit.
- **Logic Level Switching**: In digital circuits, the MMBT5551LT1 can be used as a logic level switch.
Images for reference

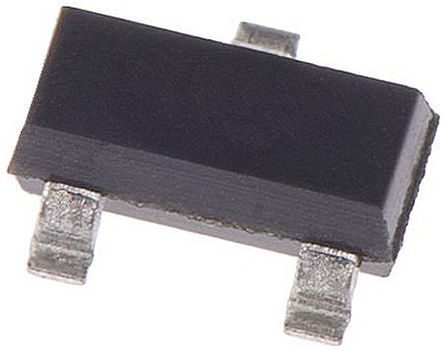

SOT-23-3_527AG
