MINI-PS-100-240AC/5DC/3
Compact switch-mode power supplies for DIN rail mounting
Manufacturer： phoenix-contact
series introduction
# Introduction to the MINI - PS - 100 - 240AC/5DC/3 Product Series
## 1. Overview
The MINI - PS - 100 - 240AC/5DC/3 product series represents a cutting - edge line of power supplies engineered to meet the diverse and demanding power requirements of modern electronic devices. These power supplies are designed with a focus on compactness, efficiency, and reliability, making them an ideal choice for a wide range of applications.
## 2. Key Features
### 2.1 Compact Design
The "MINI" in the product name truly reflects its most prominent feature. These power supplies are incredibly compact, taking up minimal space in any installation. This makes them perfect for applications where space is at a premium, such as in small electronic enclosures, embedded systems, and portable devices. Their small form factor allows for easy integration into existing setups without the need for extensive re - engineering or large mounting areas.
### 2.2 Wide Input Voltage Range
The MINI - PS - 100 - 240AC/5DC/3 power supplies can accept an input voltage ranging from 100V to 240V AC. This wide input range provides great flexibility, enabling the power supplies to be used in different regions around the world with varying mains voltages. Whether you are operating in a country with a 110V AC power grid or a 230V AC power grid, these power supplies can adapt and deliver a stable output.
### 2.3 Stable Output Voltage
The output of these power supplies is a regulated 5V DC. Maintaining a stable output voltage is crucial for the proper functioning of electronic devices. The MINI - PS - 100 - 240AC/5DC/3 series uses advanced voltage regulation technology to ensure that the 5V DC output remains within a tight tolerance range, even when there are fluctuations in the input voltage or changes in the load. This stability helps to protect connected devices from damage due to over - or under - voltage conditions.
### 2.4 High Efficiency
Efficiency is a key consideration in power supply design, as it directly impacts energy consumption and heat generation. The MINI - PS - 100 - 240AC/5DC/3 series boasts high efficiency ratings, which means that a large proportion of the input power is converted into useful output power. This not only reduces energy costs but also minimizes the amount of heat generated during operation. Less heat means a longer lifespan for the power supply and other components in the system, as well as a reduced need for additional cooling mechanisms.
### 2.5 Safety Features
Safety is of utmost importance in any power supply. These power supplies are equipped with multiple safety features, including over - current protection (OCP), over - voltage protection (OVP), and short - circuit protection (SCP). Over - current protection prevents the power supply from delivering excessive current to the connected load, which could damage the load or the power supply itself. Over - voltage protection ensures that the output voltage does not exceed a safe level, while short - circuit protection safeguards the power supply in case of a short - circuit in the load.
## 3. Technical Specifications
### 3.1 Input Parameters
- **Input Voltage Range**: 100 - 240V AC
- **Input Frequency**: 50/60Hz
- **Inrush Current**: Limited to a safe level to prevent damage to the power supply and the electrical system during startup
### 3.2 Output Parameters
- **Output Voltage**: 5V DC
- **Output Current**: [Specify the maximum output current, e.g., 3A as indicated by the "3" in the

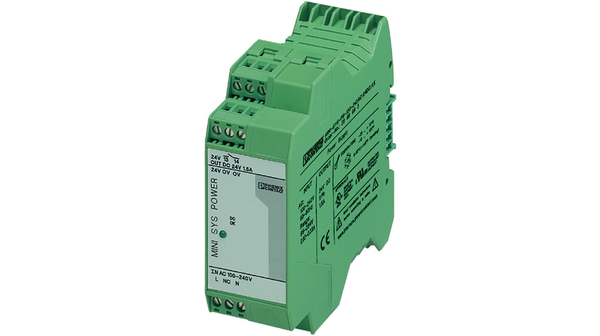

Images for reference
