MCS0402MD1002
Precision thin film resistors for compact electronic circuits
Manufacturer： ['vishay-beyschlag', 'vishay']
series introduction
# Introduction to the MCS0402MD1002 Product Series
## 1. Overview
The MCS0402MD1002 product series represents a cutting - edge offering in the field of electronic components. Engineered with precision and innovation, these components are designed to meet the diverse and demanding requirements of modern electronic applications. The series is part of a broader product line that emphasizes high performance, reliability, and compact design, making it an ideal choice for a wide range of industries.
## 2. Physical Characteristics
### Size and Dimensions
The MCS0402MD1002 series follows the 0402 package size standard, which is a widely used and recognized form factor in the electronics industry. With dimensions of approximately 1.0mm x 0.5mm, these components are extremely compact. This small size allows for high - density circuit board designs, enabling manufacturers to create more complex and miniaturized electronic devices.
### Construction
The components in this series are constructed using high - quality materials. The outer casing is made of a durable and heat - resistant material that provides excellent protection against environmental factors such as moisture, dust, and mechanical stress. Inside, the internal structure is carefully engineered to ensure stable electrical performance and long - term reliability.
## 3. Electrical Performance
### Resistance Value
The "1002" in the product code indicates a specific resistance value. In this case, it represents a resistance of 10kΩ (10,000 ohms). This resistance value is precisely calibrated during the manufacturing process to ensure accuracy within a tight tolerance range. The tight tolerance helps in maintaining consistent electrical performance across different components in the series, which is crucial for the proper functioning of electronic circuits.
### Tolerance
The MCS0402MD1002 series typically offers a tolerance of ±1%. This means that the actual resistance value of each component will deviate from the nominal 10kΩ value by no more than 1%. A low tolerance is essential in applications where precise resistance values are required, such as in voltage dividers, signal conditioning circuits, and precision measurement systems.
### Power Rating
These components are designed to handle a certain amount of power. The MCS0402MD1002 series usually has a power rating of 0.063W (1/16W). This power rating determines the maximum amount of power that the component can dissipate without overheating or experiencing performance degradation. It is important to consider the power rating when designing circuits to ensure that the components operate within their safe limits.
### Temperature Coefficient
The temperature coefficient of resistance (TCR) is an important parameter that describes how the resistance of a component changes with temperature. The MCS0402MD1002 series has a low TCR, typically in the range of ±100ppm/°C. A low TCR means that the resistance of the component remains relatively stable over a wide temperature range. This is beneficial in applications where the operating temperature may vary, such as in automotive electronics, industrial control systems, and outdoor electronic devices.
## 4. Applications
### Consumer Electronics
In consumer electronics, the MCS0402MD1002 series can be found in a variety of devices. For example, in smartphones and tablets, these resistors can be used in power management circuits, audio signal processing, and touch - screen controllers. Their small size allows for more efficient use of space on the printed circuit boards (PCBs), enabling the development of thinner and lighter devices.
### Automotive Electronics
Automotive applications require components that can withstand harsh environments and provide reliable performance. The MCS0402MD1002 series is suitable for use in automotive electronics, such as engine control units (EC
Images for reference

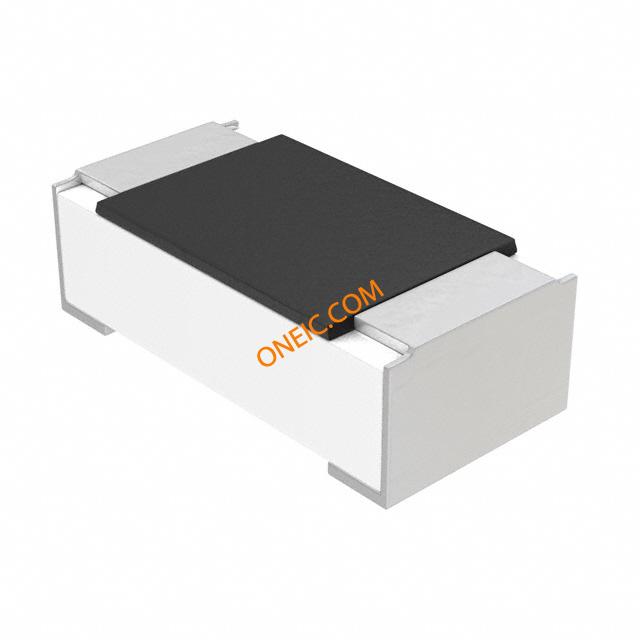

MCS 0402
