MCP1804T-3302I/DB
Compact 150mA LDO voltage regulators with 3.3V output
Manufacturer： microchip
series introduction
# Introduction to the MCP1804T - 3302I/DB Product Series
## 1. Overview
The MCP1804T - 3302I/DB belongs to a highly efficient and reliable voltage regulator product series. These voltage regulators are designed to provide stable and precise power supply solutions for a wide range of electronic devices. With their advanced features and excellent performance, they are suitable for various applications in the consumer electronics, industrial, and automotive sectors.
## 2. Key Features
### 2.1 Output Voltage Regulation
- The MCP1804T - 3302I/DB is specifically configured to provide a fixed output voltage of 3.3V. This precise output voltage is crucial for powering components such as microcontrollers, sensors, and other integrated circuits that require a stable power source to operate correctly. The tight voltage regulation ensures that the connected devices receive a consistent voltage supply, minimizing the risk of malfunctions due to voltage fluctuations.
### 2.2 Low Dropout Voltage
- One of the significant advantages of this product series is its low dropout voltage. Dropout voltage is the minimum difference between the input voltage and the output voltage required for the regulator to maintain a stable output. The MCP1804T - 3302I/DB has a low dropout voltage, which means it can operate efficiently even when the input voltage is only slightly higher than the output voltage. This feature is particularly useful in battery - powered applications, as it allows the regulator to continue providing a stable output as the battery voltage gradually decreases over time.
### 2.3 High Output Current Capability
- It can deliver a relatively high output current, making it suitable for powering multiple components or high - power devices. The ability to supply sufficient current ensures that the connected load can operate at its full capacity without experiencing voltage drops or performance degradation.
### 2.4 Low Quiescent Current
- The quiescent current of the MCP1804T - 3302I/DB is very low. Quiescent current is the current consumed by the regulator when there is no load connected. A low quiescent current is essential for battery - powered devices, as it helps to extend the battery life by reducing the standby power consumption.
### 2.5 Thermal Protection
- To prevent damage due to overheating, the MCP1804T - 3302I/DB is equipped with thermal protection. When the temperature of the regulator exceeds a certain threshold, the thermal protection mechanism kicks in and reduces the output current or shuts down the regulator temporarily. This feature ensures the long - term reliability and safety of the regulator and the connected devices.
### 2.6 Short - Circuit Protection
- The product series also includes short - circuit protection. In the event of a short - circuit at the output, the regulator will automatically limit the output current to a safe level, preventing damage to the regulator and other components in the circuit.
## 3. Package and Pin Configuration
- The MCP1804T - 3302I/DB comes in a specific package, which is designed for easy integration into printed circuit boards (PCBs). The package provides good thermal dissipation properties, helping to keep the regulator cool during operation.
- The pin configuration of the device is carefully designed to simplify the circuit layout. Each pin has a specific function, such as input voltage connection, output voltage connection, and enable/disable control. The clear pin assignment makes it straightforward for engineers to connect the regulator to the rest of the circuit.
## 4. Applications
### 4.1 Consumer Electronics
- In smartphones, tablets, and wearable devices, the MCP1804T - 3302I/
Images for reference

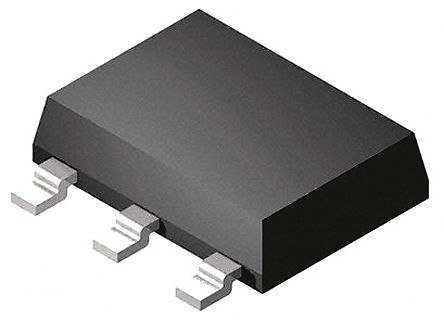

SOT223-3L
