MCP1700T-5002E/MB
Low dropout voltage regulators for precise 5V power management
Manufacturer： microchip
series introduction
# Introduction to the MCP1700T - 5002E/MB Product Series
## 1. Overview
The MCP1700T - 5002E/MB is a remarkable product series within the realm of voltage regulators, designed and manufactured to meet the diverse and demanding power management needs of modern electronic devices. These voltage regulators play a crucial role in ensuring stable and reliable power supply, which is essential for the proper functioning of various components in electronic systems.
## 2. Key Features
### 2.1 Low Dropout Voltage
One of the standout features of the MCP1700T - 5002E/MB series is its low dropout voltage. Dropout voltage refers to the minimum voltage difference between the input and output voltages required for the regulator to maintain a stable output. With a low dropout voltage, these regulators can operate efficiently even when the input voltage is only slightly higher than the desired output voltage. This is particularly beneficial in battery - powered applications, as it allows for longer battery life by maximizing the usable voltage range of the battery.
### 2.2 High Output Voltage Accuracy
The series offers high output voltage accuracy, which is vital for applications that require precise power supply. The regulators can maintain a stable output voltage within a tight tolerance range, ensuring that the connected electronic components receive the correct amount of power. This accuracy helps to prevent issues such as component malfunction, data corruption, and reduced performance due to over - or under - voltage conditions.
### 2.3 Low Quiescent Current
Quiescent current is the current consumed by the regulator when there is no load or a very light load connected. The MCP1700T - 5002E/MB series has a low quiescent current, which means that it consumes very little power in standby or low - power modes. This feature is highly advantageous in battery - operated devices, as it helps to conserve battery energy and extend the device's operating time between charges.
### 2.4 Thermal Shutdown and Current Limit Protection
To ensure the reliability and safety of the regulators, the MCP1700T - 5002E/MB series is equipped with thermal shutdown and current limit protection mechanisms. Thermal shutdown protects the regulator from overheating by automatically shutting it down when the temperature exceeds a certain threshold. Current limit protection, on the other hand, limits the output current to a safe level, preventing damage to the regulator and the connected components in case of a short - circuit or overload condition.
## 3. Technical Specifications
### 3.1 Input Voltage Range
The MCP1700T - 5002E/MB series typically has a wide input voltage range, which allows it to be used with various power sources. The specific input voltage range may vary depending on the model, but it generally spans from a few volts up to a relatively high voltage, making it suitable for a wide range of applications.
### 3.2 Output Voltage
The output voltage of the series is fixed at 5V, which is a commonly used voltage level in many electronic devices. This fixed output voltage simplifies the design process and ensures compatibility with a wide range of components that require a 5V power supply.
### 3.3 Output Current
The regulators in this series can provide a maximum output current of up to a certain value (the exact value depends on the specific model). This output current capacity is sufficient to power a variety of electronic components, including microcontrollers, sensors, and small - scale integrated circuits.
### 3.4 Package Type
The MCP1700T - 5002E/MB series is available in a specific package type, which is designed to facilitate easy mounting and integration onto printed circuit boards (PCBs). The package provides
Images for reference

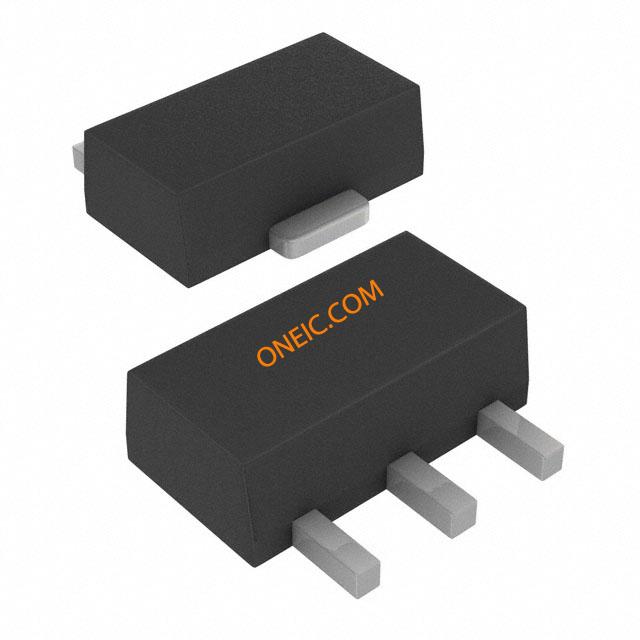

C04-029 MB
