# Introduction to the MCIMX6DL - SDP Product Series
## 1. Overview
The MCIMX6DL - SDP product series is a remarkable offering in the realm of embedded systems and microprocessors. Developed by a leading semiconductor manufacturer, this series is built around the i.MX 6DL applications processor, which is part of the i.MX 6 family. The SDP (System Development Platform) in the name indicates that it is designed to serve as a comprehensive platform for developers to explore, prototype, and develop a wide range of applications.
## 2. Key Features
### 2.1 Processor Performance
- **Powerful Core**: The MCIMX6DL - SDP is powered by an ARM Cortex - A9 core. This core architecture offers high - performance computing capabilities, with a clock speed that can reach up to a certain frequency (e.g., typically around 1 GHz). It enables smooth execution of complex algorithms, multitasking operations, and real - time processing requirements.
- **Multicore Potential**: Although the i.MX 6DL is a single - core processor, the underlying architecture of the i.MX 6 family allows for scalability. This means that developers can potentially migrate to multi - core variants in the future if their application demands increased processing power.
### 2.2 Graphics and Multimedia
- **Integrated Graphics**: It comes with integrated graphics processing units (GPUs). These GPUs are capable of handling 2D and 3D graphics rendering, which is essential for applications such as gaming, digital signage, and industrial human - machine interfaces (HMIs).
- **Multimedia Support**: The series supports a wide range of multimedia codecs, including popular video formats like H.264 and MPEG - 4. This enables seamless playback of high - definition videos, making it suitable for media - centric applications such as set - top boxes and media players.
### 2.3 Memory and Storage
- **Memory Options**: The MCIMX6DL - SDP supports various types of memory, including DDR3 SDRAM. This allows for fast data access and storage, ensuring smooth operation of applications. The memory capacity can be configured according to the specific requirements of the application, providing flexibility for different use cases.
- **Storage Interfaces**: It offers multiple storage interfaces, such as eMMC (embedded MultiMediaCard) and SD card slots. These interfaces provide convenient and reliable storage solutions for applications that require data storage, such as data logging, firmware updates, and media storage.
### 2.4 Connectivity
- **Ethernet Connectivity**: The platform is equipped with Ethernet ports, enabling seamless connection to local area networks (LANs) and the Internet. This is crucial for applications that require network communication, such as remote monitoring, cloud - based services, and industrial automation.
- **USB Interfaces**: It features USB ports, including USB 2.0, which can be used for connecting a variety of peripheral devices such as keyboards, mice, cameras, and external storage devices. This enhances the versatility of the platform and allows for easy integration with other components.
- **Wireless Connectivity Options**: Some variants of the MCIMX6DL - SDP may support wireless connectivity standards such as Wi - Fi and Bluetooth. This enables wireless communication and connectivity, making it suitable for applications in the Internet of Things (IoT) and mobile devices.
### 2.5 Peripheral Interfaces
- **GPIO (General - Purpose Input/Output)**: The platform provides a sufficient number of GPIO pins, which can be used for interfacing with external sensors, actuators, and other devices. This allows for easy customization and integration of the platform into different application environments.
- **SPI (Serial Peripheral Interface) and I2C (Inter - Integrated Circuit)**:
Images for reference

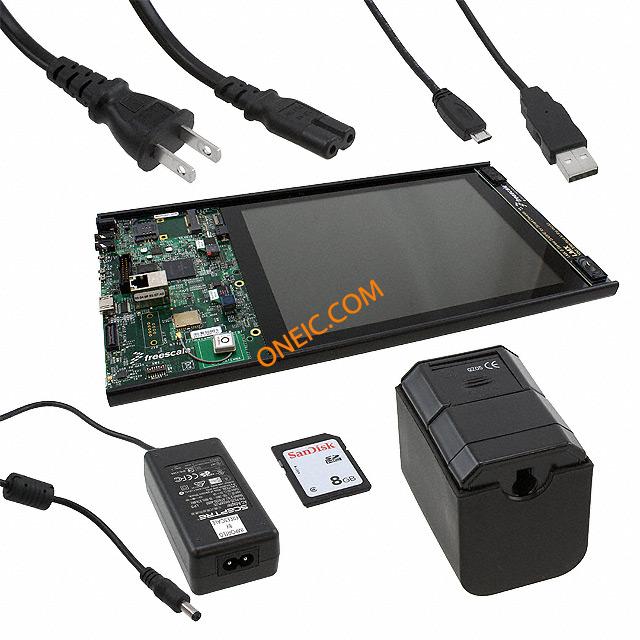

MCIMX6DL-SDP
