MC7805ACD
5V linear voltage regulators in D2PAK package for stable power supply
Manufacturer： ['rochester', 'onsemi', 'lrc']
series introduction
# Introduction to the MC7805ACD Product Series
## 1. Overview
The MC7805ACD is a well - known and widely used series of voltage regulators in the electronics industry. These regulators are part of the 78xx family, where the "05" indicates a fixed output voltage of +5V. They are designed to provide a stable and regulated power supply, which is crucial for the proper functioning of various electronic circuits and devices.
## 2. Key Features
### 2.1 Fixed Output Voltage
The most prominent feature of the MC7805ACD series is its ability to provide a fixed output voltage of +5V. This is a standard voltage level used in a vast number of electronic systems, such as microcontrollers, digital logic circuits, and many consumer electronics. The stable 5V output ensures that connected components receive a consistent power supply, reducing the risk of malfunctions due to voltage fluctuations.
### 2.2 High Output Current Capability
These regulators can handle relatively high output currents. Depending on the specific model and its thermal conditions, they can typically supply currents up to 1A. This makes them suitable for powering multiple components simultaneously or components that require a significant amount of power, such as some high - power LEDs or small motors.
### 2.3 Thermal Protection
The MC7805ACD series is equipped with built - in thermal protection. In case the regulator's temperature rises above a safe operating limit, the thermal protection mechanism kicks in and reduces the output current or shuts down the regulator to prevent damage. This feature enhances the reliability and longevity of the device, especially in applications where the regulator may be subjected to high ambient temperatures or heavy loads.
### 2.4 Short - Circuit Protection
Another important safety feature is short - circuit protection. If the output of the regulator is accidentally short - circuited to ground or another low - impedance path, the regulator will limit the current flow to a safe level. This protects both the regulator itself and the connected components from damage due to excessive current.
### 2.5 Low Dropout Voltage
The dropout voltage of the MC7805ACD is relatively low. Dropout voltage is the minimum difference between the input voltage and the output voltage required for the regulator to maintain a stable output. A low dropout voltage means that the regulator can operate effectively even when the input voltage is only slightly higher than the output voltage. This is beneficial in battery - powered applications, where the battery voltage may decrease over time.
## 3. Applications
### 3.1 Microcontroller and Digital Circuit Power Supply
Microcontrollers and digital logic circuits often require a stable 5V power supply to operate correctly. The MC7805ACD series can be used to convert a higher input voltage (such as the voltage from a battery or a power adapter) into a regulated 5V output, providing a reliable power source for these components.
### 3.2 Consumer Electronics
Many consumer electronics devices, such as portable media players, small audio amplifiers, and remote - controlled toys, use the MC7805ACD regulators. They help ensure that the internal circuits of these devices receive a stable power supply, improving the overall performance and reliability of the products.
### 3.3 Industrial Control Systems
In industrial control systems, where precision and reliability are of utmost importance, the MC7805ACD series can be used to power sensors, actuators, and control modules. The stable output voltage helps maintain accurate measurements and proper operation of the control systems.
### 3.4 Automotive Electronics
Some automotive electronics applications, such as in - car entertainment systems and dashboard displays, may also use the MC7805ACD regulators. They can convert the vehicle's battery voltage (usually around 12V or 24V) into a stable
Images for reference

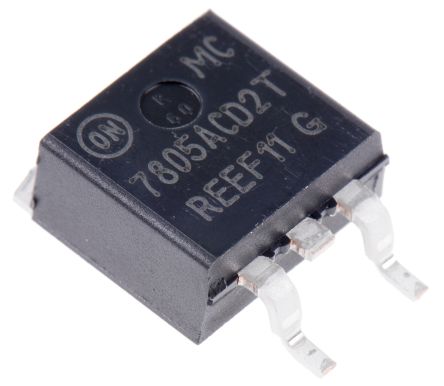

TO-263
