MAX4638EUE
Single 8:1 analog multiplexer ICs in 16-pin TSSOP packaging
Manufacturer： ['Maxim', 'maxim']
series introduction
# MAX4638EUE Product Series Introduction
## 1. Overview
The MAX4638EUE belongs to a high - performance product series offered by Maxim Integrated. It is a crucial component in the field of electronic circuits, specifically designed as a high - speed, low - on - resistance analog switch. This product series is engineered to meet the demanding requirements of various applications, providing reliable and efficient signal routing solutions.
## 2. Key Features
### 2.1 Low On - Resistance
One of the standout features of the MAX4638EUE is its extremely low on - resistance. This characteristic is essential as it minimizes signal attenuation and distortion when the switch is in the on state. With low on - resistance, the switch can handle high - frequency signals with minimal loss, ensuring that the integrity of the input signal is maintained at the output. This makes it ideal for applications where signal fidelity is of utmost importance, such as in high - speed data acquisition systems and communication circuits.
### 2.2 High - Speed Operation
The MAX4638EUE is capable of high - speed switching, with fast turn - on and turn - off times. This allows it to handle rapid changes in signal states, making it suitable for applications that require quick signal routing, like in test and measurement equipment where fast signal switching is necessary to capture transient events accurately.
### 2.3 Wide Supply Voltage Range
It supports a wide supply voltage range, which provides flexibility in different power supply configurations. This wide range allows the device to be used in a variety of systems, from battery - powered portable devices with lower supply voltages to industrial systems with higher power requirements. The ability to operate over a wide voltage range also enhances the device's compatibility with different circuit designs.
### 2.4 Low Power Consumption
In today's energy - conscious world, the low power consumption of the MAX4638EUE is a significant advantage. It helps in reducing the overall power budget of the system, especially in battery - operated devices where power efficiency is crucial for extending battery life. This feature also contributes to the device's suitability for use in portable and handheld applications.
### 2.5 ESD Protection
The product series is equipped with electrostatic discharge (ESD) protection. ESD can cause permanent damage to electronic components, and the built - in protection in the MAX4638EUE safeguards the device from such potential hazards. This makes the device more robust and reliable, reducing the risk of failure due to ESD events during handling, installation, or normal operation.
## 3. Pin Configuration and Functionality
The MAX4638EUE comes in a specific pin - out package. Each pin has a well - defined function:
- **Control Pins**: These pins are used to control the on/off state of the switch. By applying appropriate logic levels to these pins, the user can precisely control when the switch allows the signal to pass through or blocks it.
- **Input/Output Pins**: These are the terminals where the analog signals are connected. The input pin receives the incoming signal, and the output pin delivers the signal after passing through the switch.
- **Power Supply Pins**: These pins are used to provide the necessary power to the device. The wide supply voltage range mentioned earlier is applicable to these power supply pins, allowing for different power source connections.
## 4. Applications
### 4.1 Communication Systems
In communication systems, the MAX4638EUE can be used for signal routing in multiplexers and demultiplexers. It enables the selection of different communication channels or signals, ensuring efficient data transfer. For example, in a wireless base station, it can be used to switch between different antenna inputs or to route signals between different stages of the transceiver.
### 4.2 Test and Measurement Equipment
Images for reference

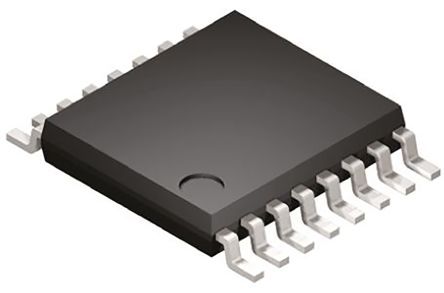

16-TSSOP
