# Introduction to the M95512 - WMN6P Product Series

## Overview
The M95512 - WMN6P product series represents a cutting - edge line of non - volatile memory solutions designed to meet the diverse and demanding requirements of modern electronic systems. These memory devices are engineered with advanced technology to provide reliable data storage, high - speed performance, and excellent endurance, making them suitable for a wide range of applications across various industries.

## Key Features

### Memory Capacity
The M95512 - WMN6P offers a substantial memory capacity of 512 kilobits. This ample storage space allows for the efficient storage of critical data, such as configuration settings, calibration data, and historical records in electronic devices. Whether it's in industrial control systems, automotive electronics, or consumer devices, the sufficient memory capacity ensures that all necessary information can be stored securely.

### Serial Interface
These memory devices are equipped with a Serial Peripheral Interface (SPI). The SPI interface provides a high - speed and efficient communication protocol between the memory and the host microcontroller or other system components. It allows for fast data transfer rates, enabling quick read and write operations. The simplicity of the SPI interface also reduces the number of pins required for communication, which helps in minimizing the overall board space and simplifying the system design.

### Non - Volatile Storage
One of the most significant advantages of the M95512 - WMN6P series is its non - volatile nature. This means that the stored data is retained even when the power supply is removed. In applications where data integrity is crucial, such as in medical devices or aerospace systems, non - volatile memory ensures that important information is not lost during power outages or system shutdowns.

### High Endurance
The M95512 - WMN6P is designed to withstand a large number of write and erase cycles. With a high endurance rating, these memory devices can handle frequent data updates without significant degradation in performance or reliability. This makes them ideal for applications that require continuous data logging or frequent configuration changes, such as in smart meters or industrial sensors.

### Low Power Consumption
In today's energy - conscious world, the low power consumption of the M95512 - WMN6P series is a valuable feature. These memory devices are optimized to operate with minimal power requirements, which is especially important for battery - powered devices. By reducing power consumption, the overall battery life of the device can be extended, making it more cost - effective and environmentally friendly.

## Package and Physical Characteristics
The M95512 - WMN6P is available in a compact and industry - standard package. The small form factor makes it suitable for use in space - constrained applications, such as wearable devices or miniature sensors. The package is designed to provide good mechanical stability and protection for the internal components, ensuring reliable operation in various environmental conditions.

## Applications

### Industrial Automation
In industrial automation systems, the M95512 - WMN6P can be used to store configuration parameters for programmable logic controllers (PLCs), motor drives, and other control devices. The non - volatile storage ensures that the system settings are retained during power cycling, and the high - speed SPI interface allows for quick data access and updates.

### Automotive Electronics
Automotive applications require reliable and durable memory solutions. The M95512 - WMN6P can be used in automotive control units, such as engine control modules (ECMs), transmission control modules (TCMs), and body control modules (BCMs). It can store critical data such as fault codes, calibration data, and vehicle settings, ensuring the proper operation of the vehicle's electronic systems.

### Consumer Electronics
In consumer electronics, the M95512 - WMN6P can be found in devices such as

Images for reference

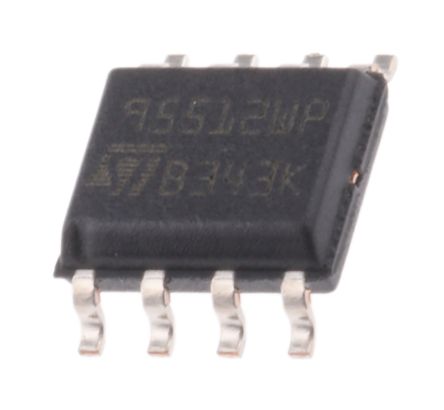

8-SOIC
