LTM8032EV

Compact DC-DC step-down power modules with 2A output and LGA71 pin configuration

Manufacturer: linear-technology

series introduction

# LTM8032EV Product Series Introduction

## 1. Overview
The LTM8032EV product series represents a cutting - edge solution in the realm of power management. Developed by a leading semiconductor company, these devices are designed to meet the diverse and demanding power requirements of modern electronic systems. The LTM8032EV series combines high performance, compact size, and ease of use, making it an ideal choice for a wide range of applications, from industrial equipment to consumer electronics.

## 2. Key Features

### 2.1 High - Efficiency Power Conversion
- The LTM8032EV series utilizes advanced switching regulator technology to achieve high - efficiency power conversion. This means that it can convert input power to the desired output power with minimal energy loss, resulting in reduced power consumption and heat generation. For example, in a typical application, it can achieve conversion efficiencies of up to 90% or more, depending on the input and output voltage levels and the load conditions.
- The high - efficiency operation not only saves energy but also extends the battery life in portable devices, making it suitable for battery - powered applications such as smartphones, tablets, and wearable devices.

### 2.2 Wide Input and Output Voltage Ranges
- These devices support a wide input voltage range, typically from a few volts up to a relatively high voltage level. For instance, the input voltage can range from 2.7V to 40V, allowing them to be used with various power sources, including batteries, wall adapters, and automotive power supplies.
- The output voltage can be adjusted over a wide range as well, enabling the LTM8032EV series to provide the exact voltage required by different loads. The output voltage can be set from 0.8V to 15V, which is suitable for powering a variety of integrated circuits, microcontrollers, and other electronic components.

### 2.3 Compact and Integrated Design
- The LTM8032EV series comes in a compact and highly integrated package. It includes all the necessary components for power conversion, such as the switching regulator, inductor, and input/output capacitors, on a single printed circuit board (PCB). This integrated design significantly reduces the board space required for power management, making it easier to design and manufacture smaller and more portable electronic products.
- The small form factor also simplifies the assembly process, as there is no need to source and mount individual components, which can save time and cost during the production phase.

### 2.4 Low Noise and Ripple
- In applications where low noise and ripple are critical, such as in audio and RF circuits, the LTM8032EV series excels. It is designed to minimize output voltage ripple and electromagnetic interference (EMI). The advanced control circuitry and high - quality components used in these devices ensure that the output voltage remains stable and clean, with low levels of noise and ripple.
- This low - noise operation helps to improve the performance and reliability of the overall system, especially in sensitive applications where even small amounts of noise can cause interference or affect the accuracy of the data.

### 2.5 Protection Features
- The LTM8032EV series is equipped with a comprehensive set of protection features to ensure the safety and reliability of the device and the connected load. These protection features include over - current protection (OCP), over - voltage protection (OVP), under - voltage lockout (UVLO), and thermal shutdown.
- Over - current protection prevents the device from drawing excessive current, which can damage the components or cause a fire hazard. Over - voltage protection safeguards the load from being exposed to voltages higher than the specified limit, while under - voltage lockout ensures that the device does not operate when the input voltage is too low. Thermal shutdown protects the device

Images for reference

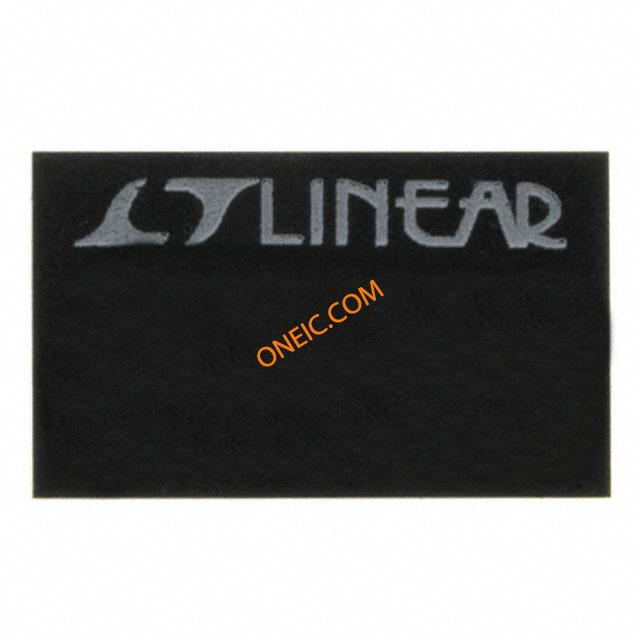

LTM Series_9x15x2.8

LTM Series_9x15x2.8

LTM8032EV#PBF

LTM8032EV#PBF

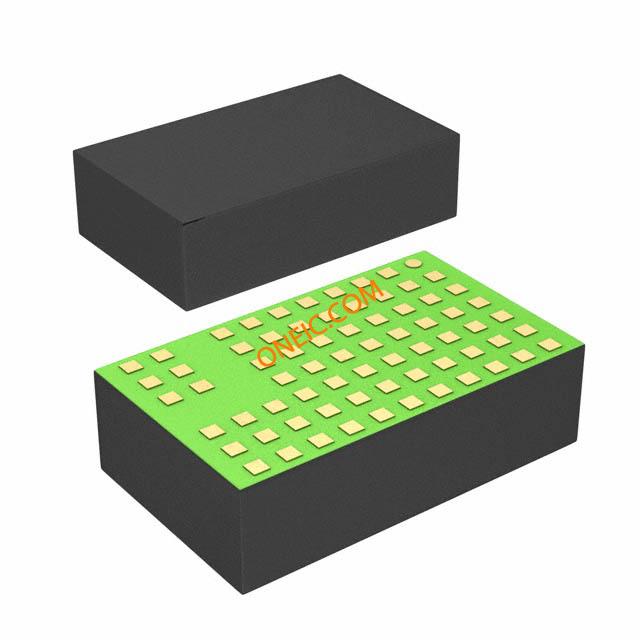

71-LGA; 05-08-1823
