LTM4609IV
Versatile DC-DC converters with adjustable step-up/down voltage regulation
Manufacturer： linear-technology
series introduction
# Introduction to the LTM4609IV Product Series
## Overview
The LTM4609IV is a highly advanced and versatile product series that belongs to the realm of power management integrated circuits (PMICs). These devices are engineered to meet the demanding power requirements of a wide range of applications, from industrial equipment to telecommunications systems and beyond. With its cutting - edge features and exceptional performance, the LTM4609IV series offers a reliable and efficient power solution for modern electronic designs.
## Key Features
### High - Efficiency Power Conversion
The LTM4609IV series is designed with state - of - the - art power conversion technology. It can achieve high efficiency levels, which is crucial for minimizing power losses and reducing heat generation. This not only helps in extending the lifespan of the components but also contributes to overall energy savings. For example, in applications where power consumption is a major concern, such as battery - powered devices, the high - efficiency operation of the LTM4609IV can significantly increase the battery life.
### Wide Input and Output Voltage Ranges
One of the standout features of the LTM4609IV series is its wide input and output voltage ranges. The input voltage can typically handle a broad spectrum, allowing it to be used in various power supply environments. This flexibility makes it suitable for applications that may have different power source requirements. On the output side, it can provide a stable and adjustable output voltage, enabling designers to tailor the power supply to the specific needs of their circuits. Whether it's powering low - voltage microcontrollers or higher - voltage analog components, the LTM4609IV can be configured accordingly.
### Integrated Design
The LTM4609IV comes in an integrated package that combines multiple functions into a single unit. This includes the power MOSFETs, inductors, and control circuitry. The integrated design offers several advantages. Firstly, it saves valuable board space, which is especially important in compact electronic devices. Secondly, it simplifies the design process as designers do not have to source and integrate multiple discrete components. This reduces the overall design time and cost, while also improving the reliability of the power supply system.
### Excellent Load and Line Regulation
The series provides excellent load and line regulation capabilities. Load regulation ensures that the output voltage remains stable even when the load current changes. This is essential for maintaining the proper operation of sensitive electronic components. Line regulation, on the other hand, guarantees that the output voltage is not affected by variations in the input voltage. Whether there are sudden changes in the power source or fluctuations in the load, the LTM4609IV can quickly adjust and maintain a consistent output voltage.
### Thermal Management
Thermal management is a critical aspect of power management devices, and the LTM4609IV series is well - equipped in this regard. It has built - in thermal protection mechanisms that prevent the device from overheating. Additionally, the high - efficiency design itself helps in reducing heat generation. In applications where the device may be operating in high - temperature environments, the thermal management features ensure reliable and continuous operation.
## Applications
### Industrial Automation
In industrial automation systems, the LTM4609IV series can be used to power various components such as programmable logic controllers (PLCs), sensors, and actuators. The wide input voltage range allows it to be integrated into different industrial power distribution systems, while the excellent regulation ensures stable power supply to these critical components. This helps in maintaining the accuracy and reliability of industrial processes.
### Telecommunications
Telecommunication equipment, such as base stations and network switches, require a stable and efficient power supply. The LTM4609IV series can meet these requirements by providing high - efficiency power conversion and precise voltage regulation. Its compact size also makes it suitable for use in the limited space available in telecommunication
Images for reference

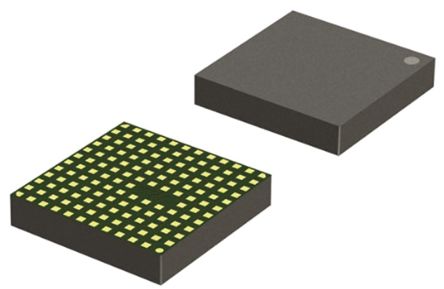

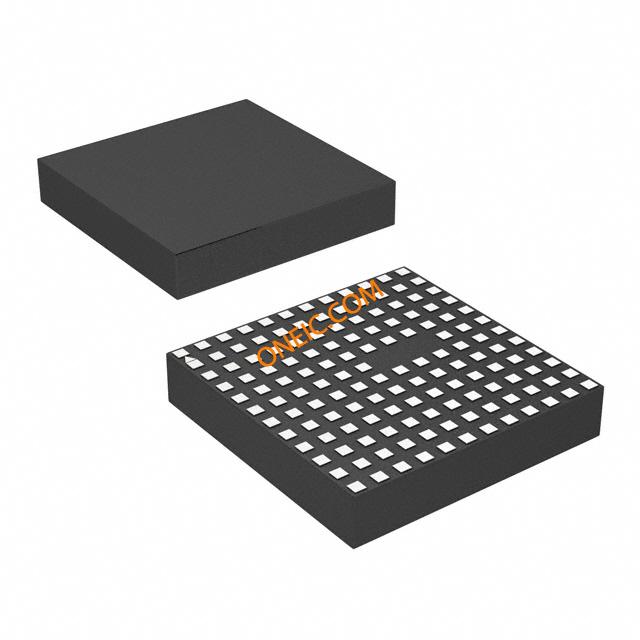

141-LGA; 05-08-1815
