# Introduction to the LTM4601HVEV#PBF Product Series

## 1. Overview
The LTM4601HVEV#PBF belongs to a high - performance and highly integrated power module product series. These modules are designed to simplify power supply design in a wide range of applications, offering a compact and efficient solution for powering various electronic devices.

## 2. Key Features

### High - Voltage Input Capability
The LTM4601HVEV#PBF can handle relatively high input voltages. This feature makes it suitable for applications where the power source provides a wide range of voltage levels. For example, in industrial power systems where the input voltage may vary due to fluctuations in the power grid, this module can maintain stable operation, ensuring reliable power delivery to the load.

### Integrated Design
It comes with an integrated switching regulator, inductor, and other necessary passive components. This integration significantly reduces the board space required for the power supply design. Designers no longer need to source and place multiple discrete components, which not only saves PCB area but also simplifies the overall layout and reduces the risk of design errors.

### High Efficiency
The module is engineered to achieve high power conversion efficiency. By minimizing power losses during the conversion process, it helps to reduce heat generation. This is crucial in applications where thermal management is a concern, such as in small - form - factor devices or high - density electronic systems. High efficiency also translates to lower power consumption, which is beneficial for battery - powered applications, extending the battery life.

### Adjustable Output Voltage
The output voltage of the LTM4601HVEV#PBF can be easily adjusted within a specified range. This flexibility allows designers to tailor the power supply to the specific requirements of the load. Whether it's powering a low - voltage microcontroller or a higher - voltage ASIC, the module can be configured to provide the appropriate output voltage.

### Current Monitoring and Protection
It is equipped with current monitoring capabilities, which enable designers to keep track of the load current. Additionally, the module has built - in protection features such as over - current protection (OCP), over - voltage protection (OVP), and under - voltage lockout (UVLO). These protection mechanisms safeguard the module and the connected load from potential damage due to abnormal operating conditions.

## 3. Applications

### Industrial Automation
In industrial automation systems, the LTM4601HVEV#PBF can be used to power various control units, sensors, and actuators. Its high - voltage input capability and robust protection features make it suitable for the harsh industrial environment, where voltage fluctuations and electrical noise are common.

### Telecommunications
Telecommunication equipment often requires stable and efficient power supplies. The module can be employed in base stations, routers, and other networking devices to provide power to the internal components. Its high efficiency helps to reduce the overall power consumption of the equipment, which is important for large - scale telecommunication networks.

### Automotive Electronics
In automotive applications, the LTM4601HVEV#PBF can be used to power in - vehicle infotainment systems, advanced driver - assistance systems (ADAS), and other electronic components. The module's ability to handle a wide input voltage range and its compact design make it well - suited for the automotive environment, where space is limited and the power supply needs to be reliable.

## 4. Package and Thermal Considerations

### Package

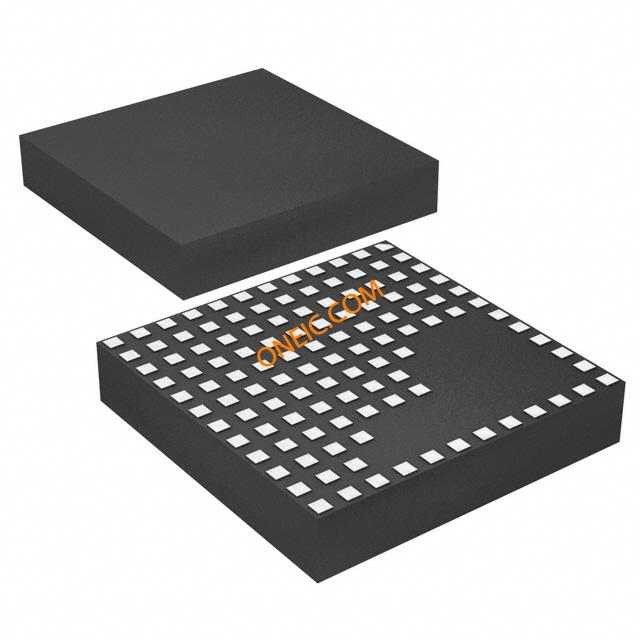

The LTM4601HVEV#PBF comes in a specific package that is designed for easy mounting on the PCB. The package provides good mechanical stability and electrical connectivity. It also allows for efficient heat dissipation, which is essential for maintaining the module's performance and reliability.

### Thermal Management
Although the module is designed to be efficient, proper thermal management is
