LT4356CMS-1

Single-channel hot swap controllers for positive voltage protection

Manufacturer: linear-technology

series introduction

# LT4356CMS - 1 Product Series Introduction

## 1. Overview
The LT4356CMS - 1 is a highly sophisticated and versatile product series developed by Linear Technology (now part of Analog Devices). This series is designed to address a wide range of power management and protection requirements in various electronic systems. With its advanced features and robust performance, it has become a popular choice among engineers and designers working on applications that demand high - reliability power handling.

## 2. Key Features

### 2.1 Overvoltage and Undervoltage Protection
- **Overvoltage Protection**: The LT4356CMS - 1 offers precise overvoltage protection. It can quickly detect when the input voltage exceeds a pre - set threshold and take appropriate action to protect downstream components. This is crucial in applications where sudden voltage spikes can cause irreversible damage to sensitive electronics. For example, in automotive electronics, power surges can occur due to alternator malfunctions or load dumps, and the LT4356CMS - 1 can safeguard the connected devices.
- **Undervoltage Protection**: It also monitors the input voltage for undervoltage conditions. When the voltage drops below a specified level, the device can either shut down the output or trigger an alarm, ensuring that the system operates within a safe voltage range. This is important in battery - powered applications, where a low battery voltage can lead to improper functioning of the device.

### 2.2 Fast Response Time
The series has an extremely fast response time to voltage transients. It can detect and respond to overvoltage or undervoltage events in a matter of microseconds. This rapid response helps in minimizing the exposure of downstream components to potentially damaging voltage conditions, enhancing the overall reliability of the system.

### 2.3 Adjustable Thresholds
The overvoltage and undervoltage thresholds of the LT4356CMS - 1 are adjustable. Designers can set these thresholds according to the specific requirements of their applications. This flexibility allows for customization and optimization of the protection circuit, making it suitable for a wide variety of power supply voltages and system specifications.

### 2.4 Low Quiescent Current
The device consumes a very low quiescent current in normal operation. This is beneficial in battery - powered or energy - sensitive applications, as it helps to conserve power and extend the battery life. The low power consumption also reduces the overall heat dissipation of the system, contributing to its long - term stability.

### 2.5 Reverse - Battery Protection
The LT4356CMS - 1 provides built - in reverse - battery protection. In applications where the battery may be installed incorrectly, this feature prevents damage to the circuit by blocking the reverse current flow. This is a common issue in portable devices and automotive systems, and the reverse - battery protection of the LT4356CMS - 1 adds an extra layer of safety.

## 3. Applications

### 3.1 Automotive Electronics
- **Infotainment Systems**: In modern cars, infotainment systems are becoming increasingly complex and sensitive to voltage variations. The LT4356CMS - 1 can protect these systems from power surges and voltage drops, ensuring reliable operation of features such as touchscreens, audio systems, and navigation units.
- **Engine Control Units (ECUs)**: ECUs are critical components in automotive engines, controlling various functions such as fuel injection and ignition timing. The LT4356CMS - 1 can safeguard these units from electrical disturbances, improving the overall performance and reliability of the engine.

### 3.2 Industrial Automation
- **PLCs (Programmable Logic Controllers)**: PLCs are widely used in industrial automation for controlling manufacturing processes. The LT4356CMS - 1 can protect these controllers from power supply fluctuations, ensuring stable operation and preventing costly

Images for reference

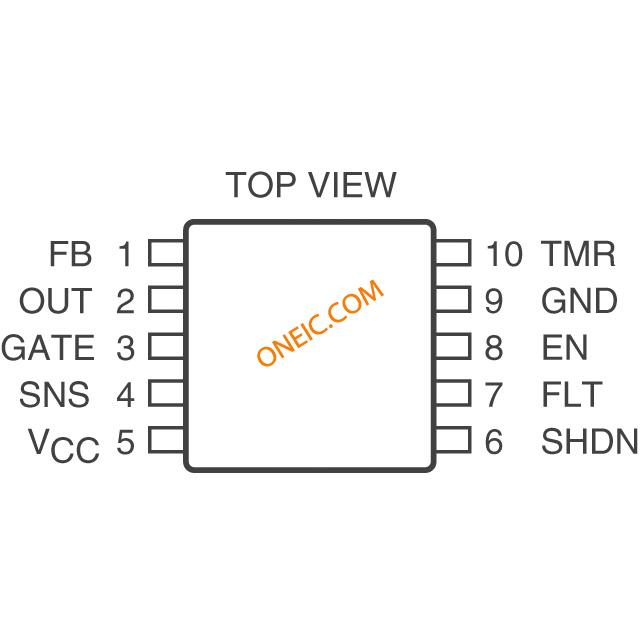

10-TFSOP, 10-MSOP
