# LT3092ETS8: A Comprehensive Introduction

## 1. Overview
The LT3092ETS8 is a remarkable product within the realm of power management integrated circuits (PMICs). It belongs to a series of precision linear regulators designed to offer high - performance voltage regulation solutions for a wide range of applications. Linear regulators are crucial components in electronic systems as they provide a stable output voltage, which is essential for the proper functioning of sensitive electronic components.

## 2. Key Features

### 2.1 Precision Voltage Regulation
One of the standout features of the LT3092ETS8 is its ability to provide highly accurate output voltage regulation. It can maintain a tight tolerance on the output voltage, even in the face of varying input voltages and load currents. This precision is vital in applications where a stable power supply is required, such as in medical devices, high - end audio equipment, and precision measurement instruments.

### 2.2 Low Noise Operation
The LT3092ETS8 is engineered to operate with extremely low noise levels. In sensitive electronic systems, noise can cause interference and degrade the performance of other components. By minimizing noise, this regulator ensures that the power supplied to the load is clean and free from unwanted electrical disturbances. This makes it an ideal choice for applications like radio frequency (RF) circuits, where noise can significantly impact signal quality.

### 2.3 High Current Capability
Despite being a linear regulator, the LT3092ETS8 can handle relatively high output currents. It is capable of delivering a substantial amount of current to the load, which allows it to power a wide variety of components, from small - scale integrated circuits to larger power - hungry devices. This high - current capability makes it suitable for applications such as powering microprocessors, which often require a significant amount of current to operate at high speeds.

### 2.4 Thermal Performance
The device is designed with excellent thermal characteristics. It has a low thermal resistance, which means that it can dissipate heat efficiently. This is important because excessive heat can reduce the performance and lifespan of electronic components. The LT3092ETS8's good thermal performance ensures that it can operate reliably even under high - load conditions, without the need for complex and bulky heat - dissipation mechanisms in many cases.

### 2.5 Adjustable Output Voltage
The LT3092ETS8 offers the flexibility of adjustable output voltage. Users can set the output voltage according to their specific application requirements. This adjustability makes it a versatile solution that can be used in a wide range of systems with different voltage needs, from low - voltage digital circuits to higher - voltage analog circuits.

## 3. Package and Pinout
The LT3092ETS8 comes in an 8 - lead surface - mount package (ETS8). This package is compact, which is beneficial for applications where space is at a premium, such as in portable electronic devices. The pinout of the LT3092ETS8 is designed in a way that simplifies the circuit layout and connection process. Each pin has a specific function, such as input voltage connection, output voltage connection, and adjustment of the output voltage. This well - defined pinout makes it easy for designers to integrate the LT3092ETS8 into their circuit boards.

## 4. Applications

### 4.1 Consumer Electronics
In consumer electronics, the LT3092ETS8 can be used in devices such as smartphones, tablets, and portable media players. It provides a stable power supply to the various components in these devices, ensuring smooth operation and high - quality performance. For example, it can power the display driver, audio amplifier, and other sensitive circuits in a smartphone, helping to maintain the overall functionality and user experience.

### 4.2 Industrial Automation
Industrial automation systems often require precise and reliable

Images for reference

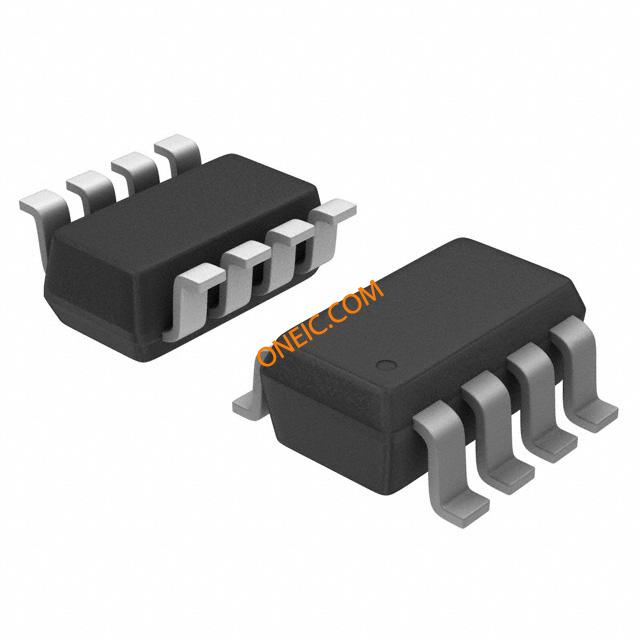

SOT-23-8
