LSM330DLC
Compact 3D accelerometer and gyroscope modules in 28-pin LGA format
Manufacturer： stm
series introduction
# LSM330DLC Product Series Introduction
## 1. Overview
The LSM330DLC is a highly advanced and versatile product series developed by STMicroelectronics, a leading player in the semiconductor industry. This series combines a 3 - axis accelerometer and a 3 - axis gyroscope in a single, compact package, offering a comprehensive solution for motion sensing applications. The integration of these two key sensors simplifies the design process for developers, reduces board space requirements, and enhances overall system performance.
## 2. Key Features
### 2.1 High - Performance Sensors
- **Accelerometer**: The 3 - axis accelerometer within the LSM330DLC provides accurate measurement of acceleration forces in three dimensions (X, Y, and Z). It has a wide range of selectable full - scale ranges, typically from ±2g to ±16g. This flexibility allows it to be used in various applications, from low - acceleration scenarios such as tilt sensing to high - acceleration applications like shock detection.
- **Gyroscope**: The 3 - axis gyroscope measures angular rate in the X, Y, and Z axes. It offers high sensitivity and low noise, enabling precise detection of rotational movements. With selectable full - scale ranges from ±245 dps (degrees per second) to ±2000 dps, it can handle both slow and fast rotational motions, making it suitable for applications such as image stabilization and virtual reality devices.
### 2.2 Low Power Consumption
One of the standout features of the LSM330DLC series is its low power consumption. This is achieved through advanced power management techniques and optimized sensor design. In power - saving modes, the sensors can operate with extremely low current consumption, which is crucial for battery - powered devices such as wearables, wireless sensors, and mobile devices. This not only extends the battery life of the end - product but also reduces heat generation, improving the overall reliability of the system.
### 2.3 Digital Output and Communication Interfaces
The LSM330DLC provides digital output, which simplifies the interface with microcontrollers and other digital systems. It supports both I²C (Inter - Integrated Circuit) and SPI (Serial Peripheral Interface) communication protocols. This dual - interface capability gives developers the flexibility to choose the most suitable communication method based on their system requirements, such as data transfer speed and compatibility with existing hardware.
### 2.4 Embedded Functions
- **FIFO (First - In - First - Out) Buffer**: The device is equipped with a large FIFO buffer that can store sensor data. This feature is useful for applications where data needs to be collected over a period of time and then transferred to the main processor in a batch. It helps reduce the frequency of data transfer between the sensor and the processor, thereby saving power and reducing the load on the communication bus.
- **Interrupt Function**: The LSM330DLC has an interrupt function that can be configured to trigger an interrupt signal when certain conditions are met, such as a specific acceleration threshold being exceeded or a significant change in angular rate. This allows the system to respond quickly to important events without continuously polling the sensor, improving system efficiency.
## 3. Applications
### 3.1 Consumer Electronics
- **Smartphones and Tablets**: In smartphones and tablets, the LSM330DLC is used for various functions such as screen orientation detection, gesture recognition, and augmented reality applications. The accurate motion sensing capabilities of the accelerometer and gyroscope enable smooth and intuitive user interactions, enhancing the overall user experience.
- **Wearable Devices**: Wearables like smartwatches and fitness trackers benefit from the low - power consumption and small form factor of the LSM330DLC. It can be used to track
Images for reference

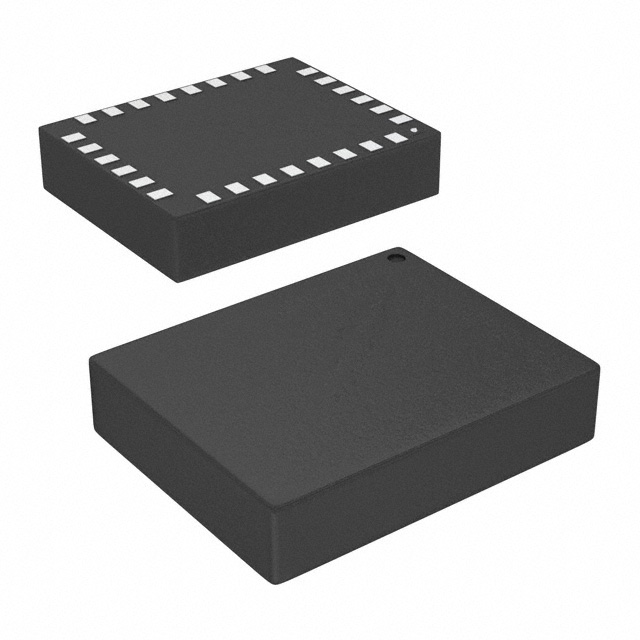

28-LGA
