LSM303CTR

Compact 3-axis accelerometer and magnetometer with I2C/SPI interfaces

Manufacturer: stm

series introduction

# LSM303CTR Product Series Introduction

## 1. Overview
The LSM303CTR is a highly integrated and advanced product series that combines a 3 - axis accelerometer and a 3 - axis magnetometer in a single compact package. This combination makes it an ideal solution for a wide range of applications where accurate motion and orientation sensing are required. Developed with cutting - edge technology, the LSM303CTR series offers high performance, reliability, and flexibility, catering to the diverse needs of modern electronic devices.

## 2. Key Features

### 2.1 High - Precision Sensing
- **Accelerometer**: The 3 - axis accelerometer within the LSM303CTR can accurately measure acceleration forces in three dimensions. It has a high resolution, allowing for the detection of even the slightest movements. This high - precision measurement is crucial for applications such as gesture recognition, where small changes in acceleration need to be accurately captured to interpret user gestures correctly.
- **Magnetometer**: The 3 - axis magnetometer provides precise measurement of the magnetic field in three directions. It can detect the Earth's magnetic field, enabling the device to determine the orientation of the sensor relative to the magnetic north. This feature is essential for compass applications and navigation systems.

### 2.2 Low Power Consumption
In today's energy - conscious world, the LSM303CTR series stands out with its low power consumption design. The device is optimized to operate with minimal power, making it suitable for battery - powered applications such as wearable devices, smartphones, and IoT sensors. By reducing power consumption, the LSM303CTR helps to extend the battery life of these devices, enhancing the user experience.

### 2.3 Wide Dynamic Range
Both the accelerometer and the magnetometer in the LSM303CTR series offer a wide dynamic range. The accelerometer can measure acceleration values from a few milligravities to several gravities, allowing it to be used in applications with different levels of motion, from gentle hand - held movements to high - impact scenarios. Similarly, the magnetometer can handle a wide range of magnetic field strengths, making it adaptable to various environments.

### 2.4 Digital Output Interface
The LSM303CTR series is equipped with a digital output interface, typically an I2C or SPI interface. This digital interface simplifies the integration of the sensor into a microcontroller - based system. It allows for easy communication between the sensor and the host device, enabling quick and efficient data transfer. The digital output also reduces the susceptibility to noise compared to analog interfaces, ensuring more reliable data acquisition.

### 2.5 Built - in Self - Test Function
To ensure the reliability and accuracy of the sensor, the LSM303CTR series includes a built - in self - test function. This function allows the device to perform internal checks on its components, verifying that the accelerometer and magnetometer are operating correctly. If any faults are detected, the self - test function can generate an error signal, enabling the system to take appropriate action, such as alerting the user or performing a calibration.

## 3. Applications

### 3.1 Consumer Electronics
- **Smartphones and Tablets**: In smartphones and tablets, the LSM303CTR is used for various functions. The accelerometer enables features such as screen rotation, where the device automatically adjusts the screen orientation based on the user's holding position. The magnetometer is used for compass applications, providing users with accurate direction information. Additionally, the combination of the two sensors can be used for augmented reality (AR) applications, where the device needs to accurately track its position and orientation in the real world.
- **Wearable Devices**: Wearable devices such as smartwatches and fitness trackers benefit

Images for reference

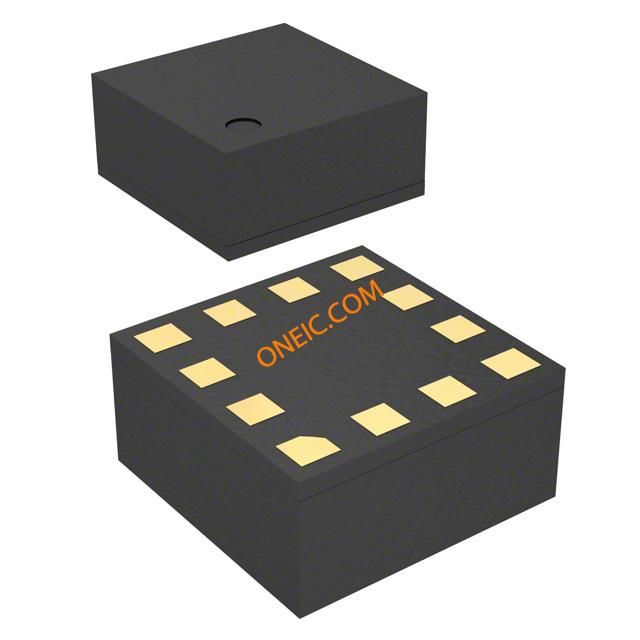

12LGA
