# Introduction to the LQH66SN1R0M03L Product Series

## 1. Overview
The LQH66SN1R0M03L belongs to a specialized series of electronic components, specifically inductors. Inductors are fundamental passive components in electronic circuits, playing crucial roles in various applications such as power management, signal filtering, and impedance matching. This product series is designed to meet the high - performance requirements of modern electronic devices with its unique features and specifications.

## 2. Physical Characteristics
### Size and Dimensions
The LQH66SN1R0M03L is engineered with a compact form factor. Its specific size is carefully designed to fit into a wide range of circuit boards, making it suitable for applications where space is at a premium. The standardized dimensions ensure easy integration into existing or new circuit designs, allowing for seamless replacement or addition to electronic systems.

### Packaging
It comes in a reliable and industry - standard packaging. The packaging not only protects the inductor during transportation and storage but also facilitates automated assembly processes. This is essential for mass - production environments, where efficiency and accuracy are key factors.

## 3. Electrical Specifications
### Inductance
The "1R0" in the product code indicates an inductance value of 1.0 μH (microhenries). Inductance is a measure of the inductor's ability to store energy in a magnetic field when an electric current flows through it. A 1.0 μH inductance is commonly used in a variety of RF (radio frequency) and power circuits. In RF circuits, it can be used for impedance matching and filtering out unwanted frequencies. In power circuits, it helps in smoothing the current flow and reducing ripple.

### Tolerance
The "M" in the code represents a tolerance of ±20%. This means that the actual inductance value of the LQH66SN1R0M03L can vary within 20% of the nominal 1.0 μH value. While a ±20% tolerance might seem relatively large, it is acceptable in many applications where cost - effectiveness is a priority and a certain degree of variation in inductance can be accommodated without significantly affecting the overall performance of the circuit.

### DC Resistance (DCR)
The LQH66SN1R0M03L has a specific DC resistance value. A low DCR is desirable as it reduces power losses in the inductor when a direct current passes through it. Lower power losses translate to higher efficiency in the circuit, which is especially important in battery - powered devices where energy conservation is crucial.

### Saturation Current
This inductor has a defined saturation current. Saturation occurs when the magnetic core of the inductor can no longer store additional magnetic energy, and the inductance value starts to decrease significantly. The saturation current specification of the LQH66SN1R0M03L indicates the maximum DC current that can flow through the inductor before it reaches the saturation point. This parameter is vital in power applications, as exceeding the saturation current can lead to performance degradation and potential circuit failures.

## 4. Performance Advantages
### High - Frequency Performance
The LQH66SN1R0M03L is designed to perform well at high frequencies. It has low parasitic capacitance and resistance, which minimizes signal losses and interference at high - frequency ranges. This makes it suitable for use in RF communication systems, such as Wi - Fi routers, mobile phones, and other wireless devices, where high - frequency signals need to be processed accurately.

### Temperature Stability
It exhibits good temperature stability. The inductor's electrical characteristics, such as inductance and DCR, remain relatively constant over a wide temperature range. This is important in applications where the device may be exposed

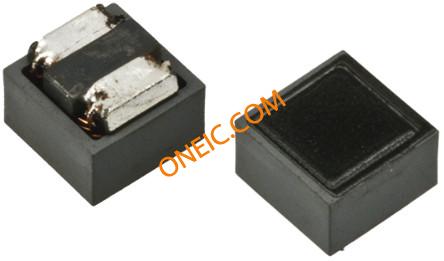

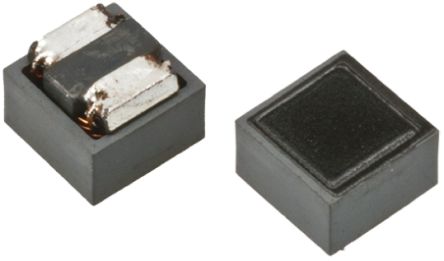

Images for reference
