LQG15HS33NJ02D
Compact multilayer RF inductors for high-frequency electronic applications
Manufacturer： murata
series introduction
# Introduction to the LQG15HS33NJ02D Product Series
## 1. Overview
The LQG15HS33NJ02D product series represents a cutting - edge range of electronic components, specifically inductors, designed to meet the diverse and demanding requirements of modern electronic circuits. These inductors are engineered with precision and advanced technology to offer high - performance characteristics, making them suitable for a wide variety of applications across different industries.
## 2. Key Specifications
### Electrical Characteristics
- **Inductance Value**: The "33N" in the model number indicates an inductance value of 33 nanohenries (nH). This specific inductance is carefully calibrated to provide the right amount of inductive reactance in a circuit, which is crucial for functions such as filtering, impedance matching, and energy storage.
- **Tolerance**: With a tolerance specification, typically denoted by the "J" in the model, it has a tolerance of ±5%. This tight tolerance ensures that the actual inductance value of each inductor in the series is within a narrow range around the nominal 33 nH, providing consistent performance in circuit designs.
- **DC Resistance (DCR)**: The LQG15HS33NJ02D inductors have a low DC resistance. A low DCR is essential as it minimizes power losses in the form of heat when direct current flows through the inductor. This not only improves the overall efficiency of the circuit but also helps in reducing the operating temperature, which can enhance the reliability and lifespan of the component.
### Physical Characteristics
- **Size and Package**: The "15" in the model number may refer to the physical size or package type of the inductor. These inductors are designed in a compact form factor, which is ideal for applications where space is limited, such as in mobile devices, wearables, and other miniaturized electronic products. The small size also allows for high - density circuit board layouts, enabling more functionality to be packed into a smaller area.
- **Mounting Style**: They are likely surface - mount devices (SMD), indicated by the general design trend of modern electronic components. Surface - mount technology offers several advantages, including easier automated assembly, better electrical performance due to shorter lead lengths, and improved mechanical stability on the printed circuit board (PCB).
## 3. Performance Advantages
### High - Frequency Performance
The LQG15HS33NJ02D series is optimized for high - frequency applications. It can handle high - frequency signals with minimal signal loss and distortion. This makes it suitable for use in radio frequency (RF) circuits, such as those found in wireless communication devices (e.g., Wi - Fi routers, smartphones, and Bluetooth devices). In these applications, the inductor helps in filtering out unwanted frequencies, improving the signal - to - noise ratio, and ensuring reliable communication.
### Saturation Current Handling
These inductors are designed to handle a relatively high saturation current. Saturation current is the maximum current at which the inductor's inductance value starts to deviate significantly from its nominal value. A high saturation current rating means that the inductor can maintain its performance even when large currents flow through it, making it suitable for power - related applications, such as voltage regulators and power converters.
### Temperature Stability
The LQG15HS33NJ02D series exhibits excellent temperature stability. The inductance value and other electrical characteristics remain relatively constant over a wide temperature range. This is important in applications where the operating temperature can vary significantly, such as in automotive electronics, industrial control systems, and outdoor electronic equipment. Temperature - stable inductors ensure consistent circuit performance regardless of the environmental conditions.
## 4. Applications
### Consumer Electronics
- **Smartphones and Tablets**: In these devices, the LQG15
Images for reference

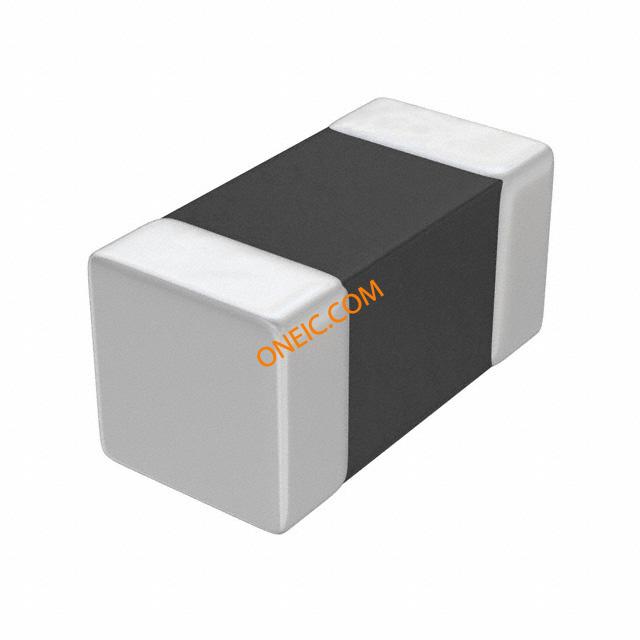

0402(LQG15)

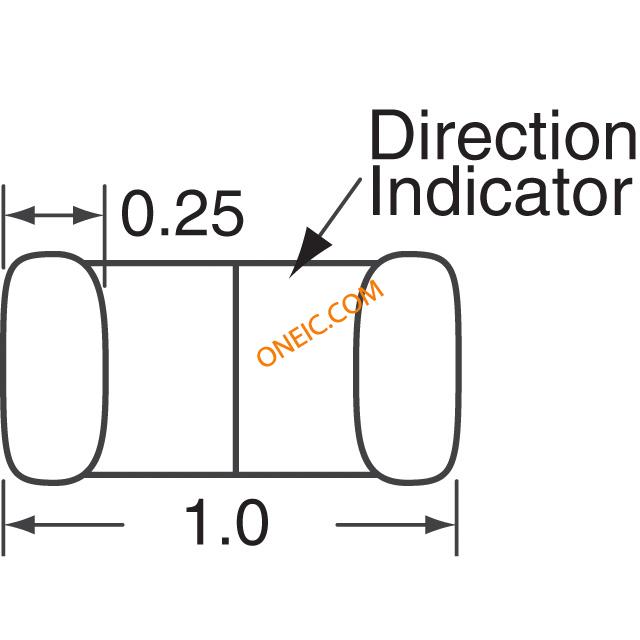

LQG15HS Series Top

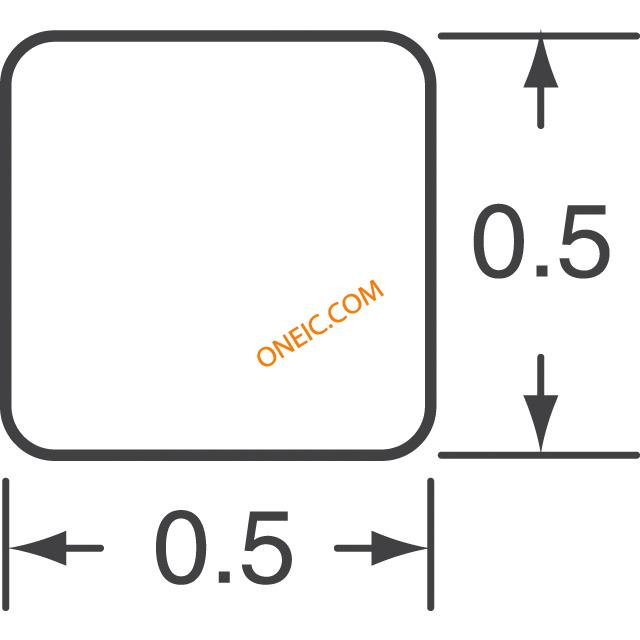

LQG15HS Series End
