LPV-60-12
60W 12V 5A AC-DC power supplies for LED lighting applications
Manufacturer： mean-well
series introduction
# LPV - 60 - 12 Product Series Introduction
## 1. Overview
The LPV - 60 - 12 product series represents a cutting - edge line of power supply solutions engineered to meet the diverse and demanding requirements of modern electronic systems. These power supplies are designed with a focus on reliability, efficiency, and performance, making them an ideal choice for a wide range of applications across multiple industries.
## 2. Key Specifications
### 2.1 Output Power
The "60" in the LPV - 60 - 12 indicates that the power supplies in this series are capable of delivering a maximum output power of 60 watts. This level of power is sufficient to support a variety of low - to medium - power electronic devices, such as small industrial control systems, LED lighting fixtures, and some types of communication equipment.
### 2.2 Output Voltage
The "12" represents the output voltage of the power supplies, which is a standard 12 volts DC. A 12 - volt output is widely used in many electronic applications because it is compatible with a large number of components and subsystems. It can directly power devices that are designed to operate at this voltage, eliminating the need for additional voltage conversion stages in many cases.
### 2.3 Input Voltage Range
The LPV - 60 - 12 series typically has a wide input voltage range, for example, it may support an input voltage from 90VAC to 264VAC. This wide range allows the power supplies to be used in different regions around the world, where the mains voltage can vary significantly. It also provides some tolerance for voltage fluctuations in the power grid, ensuring stable operation of the connected equipment.
### 2.4 Efficiency
These power supplies are designed with high - efficiency circuitry. They can achieve an efficiency of up to 85% or even higher under typical operating conditions. High efficiency not only reduces power consumption but also minimizes heat generation. Less heat means lower stress on the internal components, which in turn extends the lifespan of the power supply and improves its overall reliability.
### 2.5 Regulation
The LPV - 60 - 12 series offers excellent voltage regulation. The output voltage remains stable within a very narrow range, even when the input voltage fluctuates or the load on the power supply changes. For example, the output voltage may be regulated to within ± 1% of the nominal 12 - volt value, ensuring that the connected electronic devices receive a consistent and reliable power source.
## 3. Design and Construction
### 3.1 Compact Size
The power supplies in the LPV - 60 - 12 series are designed to be compact. Their small form factor makes them suitable for applications where space is limited, such as in small enclosures or embedded systems. Despite their small size, they still manage to pack in all the necessary components and functionality to deliver high - quality power.
### 3.2 Robust Enclosure
They are housed in a robust and durable enclosure that provides protection against mechanical damage, dust, and moisture. The enclosure is also designed to provide effective electromagnetic shielding, reducing electromagnetic interference (EMI) and ensuring that the power supply does not interfere with other nearby electronic devices.
### 3.3 Cooling
The LPV - 60 - 12 series uses a combination of natural convection and heat - sink technology for cooling. This passive cooling method eliminates the need for noisy fans, making the power supplies suitable for applications where quiet operation is required, such as in audio equipment or office environments.
## 4. Safety Features
### 4.1 Over - Voltage Protection (OVP)
The power supplies are equipped with over - voltage protection circuitry. In the event of an abnormal increase in the output voltage

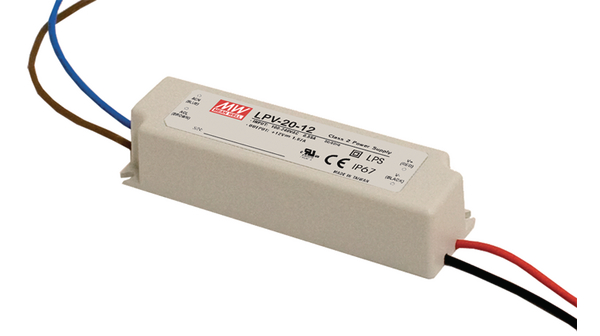

Images for reference
