LPC2292FET144/01
16/32-bit ARM7 microcontrollers with 256KB flash, 60MHz, 144-pin TFBGA
Manufacturer： nxp
series introduction
# Introduction to the LPC2292FET144/01 Product Series
## 1. Overview
The LPC2292FET144/01 is a highly versatile and powerful microcontroller product series designed by NXP Semiconductors. It belongs to the ARM7TDMI - S based family of microcontrollers, offering a rich set of features and capabilities that make it suitable for a wide range of applications, from industrial control systems to consumer electronics.
## 2. Key Features
### 2.1 Processor Core
- **ARM7TDMI - S Core**: The LPC2292FET144/01 is built around the ARM7TDMI - S 32 - bit RISC processor core. This core provides high - performance processing capabilities with a clock speed that can reach up to 60 MHz. It offers a Harvard architecture with separate instruction and data buses, enabling efficient data and instruction fetch operations simultaneously.
- **Thumb Instruction Set**: In addition to the standard ARM instruction set, the core supports the Thumb instruction set. Thumb instructions are 16 - bit in length, which helps in reducing code size while maintaining good performance. This is particularly useful in applications where memory space is limited.
### 2.2 Memory
- **On - Chip Memory**:
- **Flash Memory**: It comes with 512 kB of on - chip flash memory. This non - volatile memory is used to store the program code of the application. The flash memory has a high - speed access time, allowing for fast execution of the stored instructions.
- **SRAM**: There is 32 kB of on - chip static random - access memory (SRAM). SRAM is used for storing data during the execution of the program, such as variables, buffers, and stack space. Its fast access time ensures quick data read and write operations.
- **External Memory Interface**: The microcontroller also features an external memory interface that allows for the connection of external memory devices, such as external SRAM, SDRAM, or flash memory. This provides the flexibility to expand the memory capacity of the system according to the requirements of the application.
### 2.3 Peripherals
#### 2.3.1 Serial Communication
- **UARTs (Universal Asynchronous Receiver - Transmitter)**: The LPC2292FET144/01 is equipped with two UARTs. UARTs are commonly used for serial communication with other devices, such as sensors, displays, or other microcontrollers. They support asynchronous data transfer at various baud rates, making it easy to interface with a wide range of serial devices.
- **SPI (Serial Peripheral Interface)**: There are two SPI interfaces available. SPI is a synchronous serial communication protocol that allows for high - speed data transfer between the microcontroller and other SPI - compatible devices, such as external memory chips, sensors, or actuators.
- **I²C (Inter - Integrated Circuit)**: It has two I²C interfaces. I²C is a multi - master, multi - slave serial communication protocol that is widely used for connecting low - speed devices, such as EEPROMs, sensors, and real - time clocks.
#### 2.3.2 Timers and Counters
- **Multiple Timers**: The microcontroller includes several timers, such as general - purpose timers and watchdog timers. General - purpose timers can be used for tasks like generating time delays, measuring time intervals, and generating PWM (Pulse Width Modulation) signals. The watchdog timer is used to monitor the operation of the microcontroller and reset it in case of a software malfunction.
#### 2.3.3 Analog - to - Digital Converter (ADC)
- **10 - bit ADC**: It features a
Images for reference

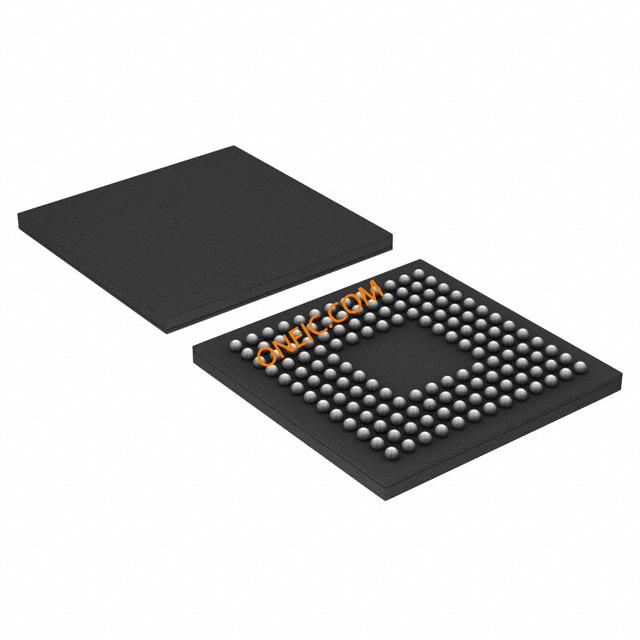

144-TFBGA
