LNK363PN
Offline AC/DC switching regulators in 7-pin PDIP packages
Manufacturer： power-integrations
series introduction
# LNK363PN Product Series Introduction
## 1. Overview
The LNK363PN product series represents a cutting - edge solution in the field of power management integrated circuits. These devices are designed to offer high - performance, cost - effective, and reliable power conversion for a wide range of applications. With a focus on efficiency, simplicity, and safety, the LNK363PN series has become a popular choice among engineers and designers.
## 2. Key Features
### 2.1 High Efficiency
- The LNK363PN series is engineered to achieve high levels of power conversion efficiency. This is crucial in modern electronic devices as it reduces energy consumption, minimizes heat generation, and extends the lifespan of the components. By using advanced semiconductor technology and optimized circuit designs, these devices can convert input power to output power with minimal losses, making them suitable for energy - conscious applications.
- For example, in battery - powered devices, high efficiency means longer battery life, which is a significant advantage for portable electronics such as smartphones, tablets, and wearables.
### 2.2 Integrated Design
- One of the standout features of the LNK363PN series is its highly integrated design. It combines multiple functions into a single chip, including a power MOSFET, a controller, and protection circuits. This integration simplifies the design process for engineers, reduces the number of external components required, and saves board space.
- In a typical power supply design, using a non - integrated solution would require separate components for each function, which not only increases the complexity of the circuit but also the cost and the risk of component failure. The integrated design of the LNK363PN series mitigates these issues.
### 2.3 Wide Input Voltage Range
- The LNK363PN devices can operate over a wide input voltage range. This flexibility allows them to be used in various power supply applications, whether it is a low - voltage DC power source or a high - voltage AC power grid.
- For instance, in industrial applications where the power supply voltage may vary due to different power sources or line conditions, the wide input voltage range of the LNK363PN series ensures stable operation and reliable performance.
### 2.4 Comprehensive Protection Features
- Safety is a top priority in power management, and the LNK363PN series is equipped with a comprehensive set of protection features. These include over - voltage protection (OVP), over - current protection (OCP), and thermal shutdown protection.
- Over - voltage protection prevents the output voltage from exceeding a safe level, which can damage the connected electronic devices. Over - current protection limits the current flowing through the device to prevent overheating and component failure. Thermal shutdown protection automatically shuts down the device when the temperature exceeds a certain threshold, protecting it from thermal damage.
## 3. Applications
### 3.1 Consumer Electronics
- In consumer electronics, the LNK363PN series is widely used in chargers for mobile phones, tablets, and other portable devices. Its high efficiency and compact size make it an ideal choice for these applications, where space is limited, and energy efficiency is crucial.
- It can also be used in smart home devices such as smart speakers, smart thermostats, and security cameras. These devices often require a reliable and efficient power supply, and the LNK363PN series can meet these requirements.
### 3.2 Industrial Equipment
- Industrial equipment often operates in harsh environments and requires a stable and robust power supply. The LNK363PN series is suitable for industrial applications such as motor drives, programmable logic controllers (PLCs), and industrial sensors.
- Its wide input voltage range and comprehensive protection features ensure reliable operation even in the presence of voltage fluctuations and other electrical disturbances.
### 3.
Images for reference

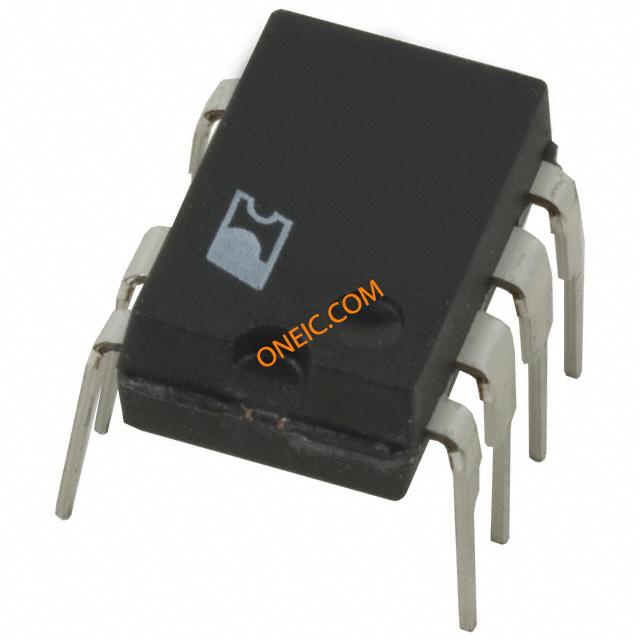

8-BDIP
Image Preview

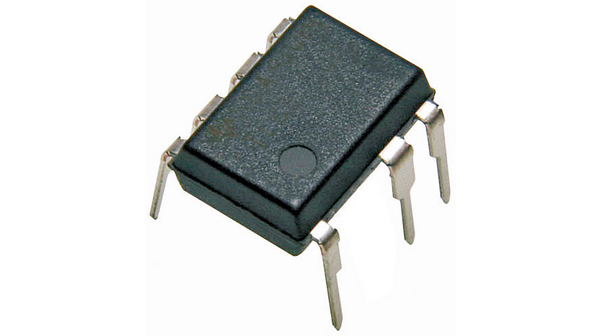

Image Preview
