LM22670MR-ADJ
Adjustable 3A step-down switching voltage regulators for DC-DC conversion
Manufacturer： ['national-semiconductor', 'rochester', 'ti']
series introduction
# Introduction to the LM22670MR - ADJ Product Series
## 1. Overview
The LM22670MR - ADJ is a highly versatile and efficient product series within the realm of power management integrated circuits. It is specifically designed to address a wide range of power conversion requirements in various electronic applications. This adjustable step - down (buck) switching regulator offers a reliable and cost - effective solution for converting higher input voltages to lower, regulated output voltages.
## 2. Key Features
### 2.1 High Efficiency
One of the standout features of the LM22670MR - ADJ is its high efficiency. It utilizes advanced switching technology to minimize power losses during the conversion process. This high efficiency not only helps in reducing power consumption but also results in less heat generation. As a result, it can operate in a wide range of environmental conditions without the need for excessive heat - sinking solutions, making it suitable for both space - constrained and power - sensitive applications.
### 2.2 Adjustable Output Voltage
The "ADJ" in the product name indicates that the output voltage of the LM22670MR - ADJ is adjustable. This flexibility allows designers to set the output voltage according to the specific requirements of their application. The output voltage can be easily adjusted using a simple resistor divider network, providing a wide range of output voltage options from a single device. This feature makes it an ideal choice for applications where different voltage levels are needed, such as in multi - voltage power supplies for microcontrollers, sensors, and other electronic components.
### 2.3 Wide Input Voltage Range
The LM22670MR - ADJ can handle a wide input voltage range. It can accept input voltages from a relatively high level down to a lower level, which gives it the ability to be used in a variety of power sources. For example, it can be powered by a battery with a varying voltage level or a regulated power supply with a different output voltage. This wide input voltage range enhances its compatibility with different power systems and makes it a more versatile solution for different types of applications.
### 2.4 Integrated Protection Features
To ensure the reliability and safety of the system, the LM22670MR - ADJ is equipped with several integrated protection features. These include over - current protection (OCP), which limits the output current to a safe level in case of a short - circuit or excessive load. Over - temperature protection (OTP) is also included, which shuts down the device when the temperature exceeds a certain threshold, preventing damage due to overheating. Additionally, under - voltage lockout (UVLO) ensures that the device operates only when the input voltage is within a safe and stable range.
### 2.5 Low Quiescent Current
The device has a low quiescent current, which is the current consumed by the regulator when there is no load or a very light load. This low quiescent current is beneficial for battery - powered applications as it helps to extend the battery life. Even when the system is in standby mode, the LM22670MR - ADJ consumes minimal power, making it an energy - efficient choice for portable and battery - operated devices.
## 3. Applications
### 3.1 Consumer Electronics
In consumer electronics, the LM22670MR - ADJ can be used in a variety of devices such as smartphones, tablets, and portable media players. It can provide the necessary regulated power supply for the internal components, such as the processor, memory, and display. Its high efficiency and low quiescent current are particularly advantageous in these battery - powered devices, as they help to extend the battery life and reduce heat generation, improving the overall user experience.
### 3.2 Industrial Automation
Industrial automation systems often require reliable and efficient power supplies
Images for reference

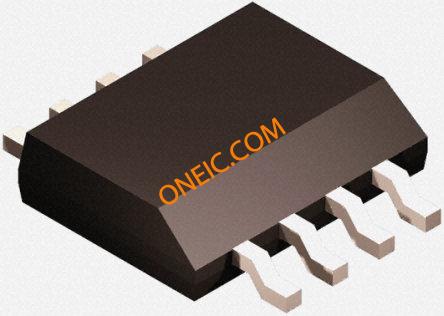

DDA-8-SOIC Pkg
