# LFXTAL026384 Product Series Introduction

## 1. Overview
The LFXTAL026384 product series represents a cutting - edge line of crystal oscillators designed to meet the diverse and demanding requirements of modern electronic systems. These crystal oscillators are engineered with precision and advanced technology to provide stable, accurate, and reliable clock signals, which are essential for the proper functioning of a wide range of electronic devices.

## 2. Key Features

### 2.1 High Frequency Stability
One of the most prominent features of the LFXTAL026384 series is its exceptional frequency stability. These crystal oscillators are capable of maintaining a highly accurate frequency output over a wide range of operating conditions, including temperature variations, voltage fluctuations, and mechanical stress. This stability is crucial for applications such as communication systems, where even the slightest frequency deviation can lead to signal degradation and communication errors.

### 2.2 Low Phase Noise
The LFXTAL026384 series exhibits extremely low phase noise characteristics. Phase noise can introduce unwanted jitter in the clock signal, which can have a significant impact on the performance of high - speed digital circuits, analog - to - digital converters (ADCs), and radio frequency (RF) systems. By minimizing phase noise, these crystal oscillators ensure clean and stable clock signals, enabling high - performance operation of the connected electronic components.

### 2.3 Wide Frequency Range
This product series offers a wide frequency range to accommodate different application needs. Whether it's a low - frequency application such as a real - time clock (RTC) or a high - frequency requirement for a high - speed data communication system, the LFXTAL026384 series can provide the appropriate frequency output. The flexibility in frequency selection makes it suitable for a broad spectrum of industries, including telecommunications, consumer electronics, automotive, and industrial automation.

### 2.4 Compact Size
The LFXTAL026384 crystal oscillators are designed with a compact form factor. This small size is highly advantageous in modern electronic devices, where space is often at a premium. The compact design allows for easy integration into printed circuit boards (PCBs) without taking up excessive space, enabling the development of more miniaturized and portable electronic products.

### 2.5 Low Power Consumption
In an era where energy efficiency is a top priority, the LFXTAL026384 series is engineered to consume minimal power. This low power consumption not only helps to extend the battery life of portable devices but also reduces the overall power requirements of larger electronic systems. It is an ideal choice for applications where power management is critical, such as battery - powered sensors, wearables, and Internet of Things (IoT) devices.

## 3. Technical Specifications

### 3.1 Frequency Tolerance
The frequency tolerance of the LFXTAL026384 series is typically within a very narrow range, ensuring high - precision frequency output. For example, in some models, the frequency tolerance can be as low as ±10 ppm (parts per million), which means that the actual frequency of the oscillator will deviate by no more than 10 parts per million from the nominal frequency.

### 3.2 Operating Temperature Range
These crystal oscillators are designed to operate reliably over a wide temperature range. The standard operating temperature range for the LFXTAL026384 series is usually from - 40°C to +85°C, although some models may offer an extended temperature range to meet the requirements of more extreme environments, such as automotive and aerospace applications.

### 3.3 Supply Voltage
The LFXTAL026384 series supports a variety of supply voltages, typically ranging from 1.8V to 3.3V. This flexibility in supply voltage allows for easy

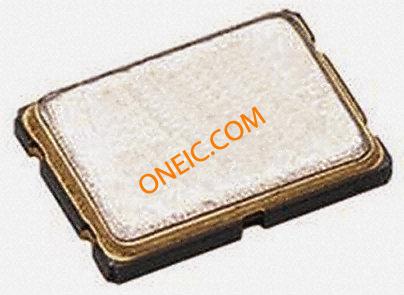

Images for reference
