LFE2-12E-5T144C

Versatile FPGAs with 12K LUTs, 93 I/O, and DSP capabilities

Manufacturer: lattice

series introduction

# Introduction to the LFE2 - 12E - 5T144C Product Series

## 1. Overview
The LFE2 - 12E - 5T144C belongs to a specialized and high - performance product series, typically falling within the realm of field - programmable gate arrays (FPGAs). FPGAs are integrated circuits that can be programmed and reprogrammed by the user after manufacturing, offering a high degree of flexibility for a wide range of applications.

## 2. Key Features

### Logic Capacity
The "12E" in the product model indicates a certain level of logic capacity. This FPGA has a sufficient number of logic elements, which are the building blocks for implementing digital circuits. These logic elements can be configured to perform various functions such as arithmetic operations, data storage, and control logic. With this capacity, it can handle moderately complex digital designs, making it suitable for applications that require a balance between performance and resource utilization.

### Speed Grade
The "5" represents the speed grade of the device. A higher speed grade generally means that the FPGA can operate at faster clock frequencies, enabling it to process data more quickly. This is crucial for applications where real - time processing is required, such as high - speed data acquisition systems, communication protocols with strict timing requirements, and video processing applications.

### Package Type
The "T144C" refers to the package type. The "T" might indicate a specific package family, and the "144" represents the number of pins on the package. A 144 - pin package provides a reasonable number of input/output (I/O) pins, allowing the FPGA to interface with a variety of external components such as sensors, actuators, memory chips, and other integrated circuits. The "C" could denote certain characteristics of the package, such as the package material or the pin configuration.

### Low Power Consumption
This product series is likely designed with low - power features. In today's energy - conscious world, low power consumption is a significant advantage, especially for battery - powered devices or applications where heat dissipation is a concern. The FPGA can operate efficiently while minimizing power usage, which not only extends the battery life of portable devices but also reduces the overall operating cost and heat generation in larger systems.

## 3. Applications

### Industrial Automation
In industrial automation, the LFE2 - 12E - 5T144C can be used for controlling and monitoring various processes. It can interface with sensors to collect data such as temperature, pressure, and position, and then use its programmable logic to process this data and generate appropriate control signals for actuators. For example, it can be used in robotic arms to control their movement based on the feedback from sensors, ensuring precise and efficient operation.

### Communication Systems
The high - speed processing capabilities and multiple I/O pins make it suitable for communication systems. It can be used to implement communication protocols such as Ethernet, USB, or serial communication. In wireless communication, it can be used for baseband processing, signal modulation, and demodulation. For instance, in a small - scale wireless access point, the FPGA can handle the data processing and protocol management tasks.

### Consumer Electronics
In consumer electronics, the FPGA can be used for functions such as image and video processing. It can enhance the visual quality of displays by performing tasks like image scaling, color correction, and noise reduction. Additionally, it can be used in smart home devices for controlling and coordinating different functions, such as lighting control, temperature regulation, and security monitoring.

## 4. Development and Programming
The LFE2 - 12E - 5T144C can be programmed using industry - standard hardware description languages (HDLs) such as VHDL or Verilog. These languages

Images for reference

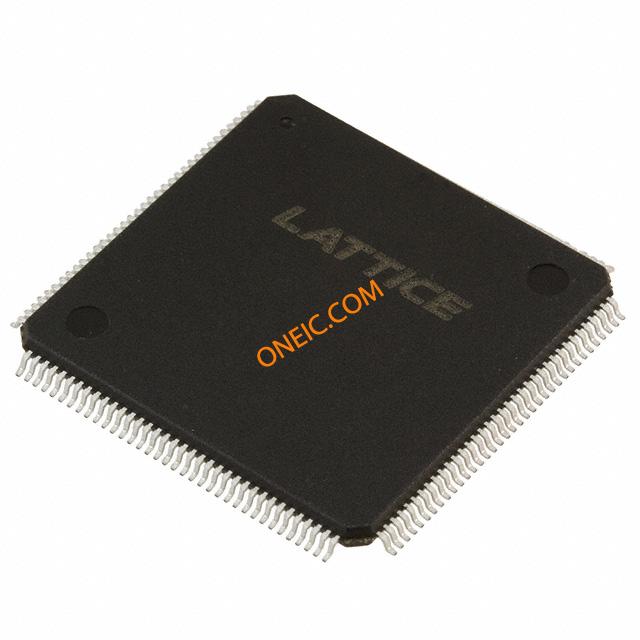

144-LQFP
