LF412CP
Dual JFET-input operational amplifiers in 8-pin PDIP packages
Manufacturer： ['rochester', 'ti']
series introduction
# Introduction to the LF412CP Product Series
## 1. Overview
The LF412CP is a highly regarded operational amplifier (op - amp) product series that has found widespread use in a variety of electronic applications. Operational amplifiers are fundamental building blocks in analog circuit design, and the LF412CP offers a combination of performance, reliability, and versatility that makes it a popular choice among engineers and hobbyists alike.
## 2. Key Features
### 2.1 High Input Impedance
One of the standout features of the LF412CP is its extremely high input impedance. This characteristic allows the op - amp to draw very little current from the source connected to its input terminals. In practical terms, it means that the LF412CP can interface with high - impedance sources, such as sensors or other high - impedance signal generators, without significantly loading them. This is crucial in applications where signal integrity needs to be maintained, as it prevents the source signal from being distorted due to excessive current draw.
### 2.2 Low Input Bias Current
The LF412CP has a low input bias current. Input bias current is the average of the currents flowing into the two input terminals of the op - amp. A low input bias current is beneficial because it reduces the voltage drop across any input resistors, minimizing errors in the input signal. This is particularly important in precision applications, such as in instrumentation amplifiers or in circuits where small signals need to be accurately amplified.
### 2.3 High Gain
This op - amp series offers a high open - loop gain. The open - loop gain is the ratio of the output voltage to the input voltage when there is no external feedback applied. A high open - loop gain allows for precise amplification of small input signals. In closed - loop configurations, which are commonly used in practical circuits, the high open - loop gain enables the op - amp to achieve accurate and stable amplification according to the feedback network design.
### 2.4 Wide Bandwidth
The LF412CP has a relatively wide bandwidth. Bandwidth refers to the range of frequencies over which the op - amp can operate effectively. A wide bandwidth makes the LF412CP suitable for applications that involve processing high - frequency signals, such as in audio amplifiers, communication systems, and high - speed data acquisition circuits.
### 2.5 Low Offset Voltage
Offset voltage is the voltage that must be applied between the input terminals of the op - amp to make the output voltage zero. The LF412CP has a low offset voltage, which means that in the absence of an input signal, the output voltage is very close to zero. This is essential in applications where accurate DC signal amplification or processing is required, such as in DC - coupled amplifiers or in circuits for measuring small DC voltages.
## 3. Package and Pin Configuration
The LF412CP is typically available in an 8 - pin dual in - line package (DIP). This package is widely used in the electronics industry due to its ease of handling and compatibility with standard printed circuit boards (PCBs). The pin configuration of the LF412CP is as follows:
- **Pin 1 and Pin 5**: Offset null pins. These pins are used to adjust the offset voltage of the op - amp to minimize any output voltage error when the input voltage is zero.
- **Pin 2**: Inverting input terminal. The input signal applied to this pin is inverted at the output.
- **Pin 3**: Non - inverting input terminal. The input signal applied to this pin is amplified without inversion at the output.
- **Pin 4**: Negative power supply terminal. This pin is connected to the negative voltage source.
- **Pin 6**: Output terminal. The amplified output signal is available at this pin
Images for reference

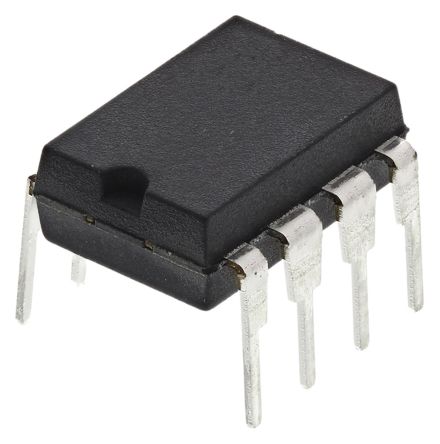

8-DIP
