LCMXO2-1200HC-5TG100C
Programmable logic devices with multiple I/O and voltage options
Manufacturer： lattice
series introduction
# Introduction to the LCMXO2 - 1200HC - 5TG100C Product Series
## 1. Overview
The LCMXO2 - 1200HC - 5TG100C belongs to the Lattice MachXO2 family of Field - Programmable Gate Arrays (FPGAs). FPGAs are integrated circuits that can be programmed and reprogrammed by the user after manufacturing, offering a high degree of flexibility and adaptability for a wide range of applications. This particular product in the series is designed to meet the needs of various industries, including consumer electronics, industrial control, and communication systems.
## 2. Key Features
### 2.1 Logic Capacity
- The "1200" in the product name indicates the approximate number of Look - Up Tables (LUTs). LUTs are the basic building blocks of an FPGA, used to implement combinational logic functions. With 1200 LUTs, the LCMXO2 - 1200HC - 5TG100C can handle moderately complex digital logic designs, such as small - scale control systems, simple signal processing algorithms, and interface logic.
### 2.2 High - Speed Performance
- The "HC" in the model number stands for high - performance configuration. This implies that the device is optimized for high - speed operation. It can support fast clock frequencies, enabling it to process data at a rapid pace. This is crucial for applications that require real - time data processing, such as high - speed communication interfaces and high - frequency control loops.
- The "5" in the product code represents the speed grade. A lower speed grade number generally indicates better speed performance. So, the LCMXO2 - 1200HC - 5TG100C offers relatively fast propagation delays and high - speed signal routing, which is essential for meeting the timing requirements of complex designs.
### 2.3 Package Type
- The "TG100" refers to the package type. It is a 100 - pin Thin Quad Flat Pack (TQFP) package. This package provides a compact form factor, making it suitable for space - constrained applications. The TQFP package also offers good thermal performance and electrical characteristics, ensuring reliable operation of the FPGA.
- The "C" at the end of the product code may indicate a specific package option or a particular version of the device with additional features or enhancements.
### 2.4 Embedded Memory
- In addition to the logic resources, the LCMXO2 - 1200HC - 5TG100C includes embedded memory blocks. These memory blocks can be used for storing data, such as configuration data, intermediate results in signal processing, or look - up tables for specific algorithms. The availability of on - chip memory reduces the need for external memory components, simplifying the overall system design and reducing cost.
### 2.5 Low Power Consumption
- The Lattice MachXO2 family is known for its low - power operation. The LCMXO2 - 1200HC - 5TG100C is no exception. It is designed to consume minimal power, making it suitable for battery - powered devices and energy - efficient applications. Low power consumption also helps in reducing heat dissipation, which is beneficial for the long - term reliability of the device.
## 3. Applications
### 3.1 Consumer Electronics
- In consumer electronics, the LCMXO2 - 1200HC - 5TG100C can be used for various functions. For example, it can be employed in smart home devices to handle sensor data processing and control functions. It can interface with different types of sensors, such as temperature sensors, motion
Images for reference

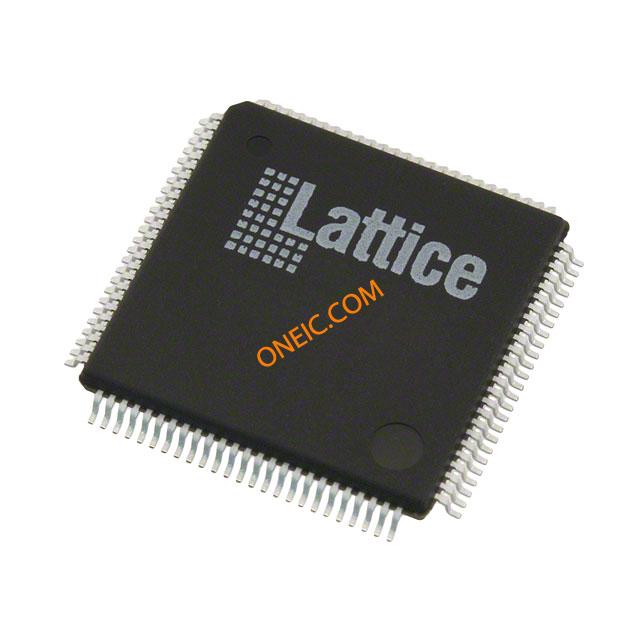

100TQFP
