# LAN91C111 - NS Product Series Introduction

## 1. Overview
The LAN91C111 - NS product series represents a cutting - edge solution in the field of network communication. Developed with advanced semiconductor technology, these devices are designed to meet the diverse and demanding requirements of modern networking applications. Whether it's for industrial automation, consumer electronics, or automotive systems, the LAN91C111 - NS series offers reliable and high - performance Ethernet connectivity.

## 2. Key Features

### 2.1 High - Speed Connectivity
- **Fast Ethernet Support**: The LAN91C111 - NS series is fully compliant with the IEEE 802.3 standard for Fast Ethernet, providing a data transfer rate of up to 100 Mbps. This high - speed connectivity enables quick and efficient data exchange between devices, making it suitable for applications that require real - time data transmission, such as video streaming, industrial control systems, and high - speed data logging.
- **Auto - Negotiation**: The devices support auto - negotiation of speed and duplex mode. This feature allows the LAN91C111 - NS to automatically detect the capabilities of the connected network device (e.g., a switch or router) and adjust its operation mode accordingly. It can seamlessly switch between 10 Mbps and 100 Mbps speeds, as well as half - duplex and full - duplex modes, ensuring optimal performance in different network environments.

### 2.2 Low Power Consumption
- **Energy - Efficient Design**: In today's energy - conscious world, the LAN91C111 - NS series stands out with its low power consumption. The integrated circuit is designed using advanced power management techniques, which significantly reduce the power requirements during both active and idle states. This makes it an ideal choice for battery - powered devices, such as portable industrial monitors, IoT sensors, and mobile communication devices, where power efficiency is crucial for extended operation.

### 2.3 Robust Physical Layer
- **Integrated Transceiver**: The LAN91C111 - NS incorporates an integrated Ethernet transceiver, which combines the functions of a physical layer device (PHY) and a media access controller (MAC). This integration simplifies the design of network interfaces, reduces the number of external components, and enhances the overall reliability of the system.
- **Electromagnetic Compatibility (EMC)**: The product series is designed to meet strict EMC standards. It has built - in shielding and filtering mechanisms to minimize electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures stable operation in noisy industrial environments and complies with regulatory requirements for electromagnetic emissions.

### 2.4 Flexible Interface Options
- **Parallel and Serial Interfaces**: The LAN91C111 - NS offers multiple interface options, including parallel and serial interfaces. The parallel interface provides high - speed data transfer between the device and the host processor, while the serial interface (such as SPI or I2C) is more suitable for applications with limited pin count or where a simpler communication protocol is required. This flexibility allows designers to choose the most appropriate interface based on the specific requirements of their system.

## 3. Applications

### 3.1 Industrial Automation
- **Factory Automation**: In factory automation systems, the LAN91C111 - NS can be used to connect various industrial devices, such as programmable logic controllers (PLCs), sensors, and actuators, to the factory network. Its high - speed connectivity and reliability ensure real - time monitoring and control of industrial processes, improving productivity and efficiency.
- **Process Control**: For process control applications in industries such as chemical, oil, and gas, the LAN91C111 - NS provides a stable and secure communication link between control systems and field devices. It

Images for reference

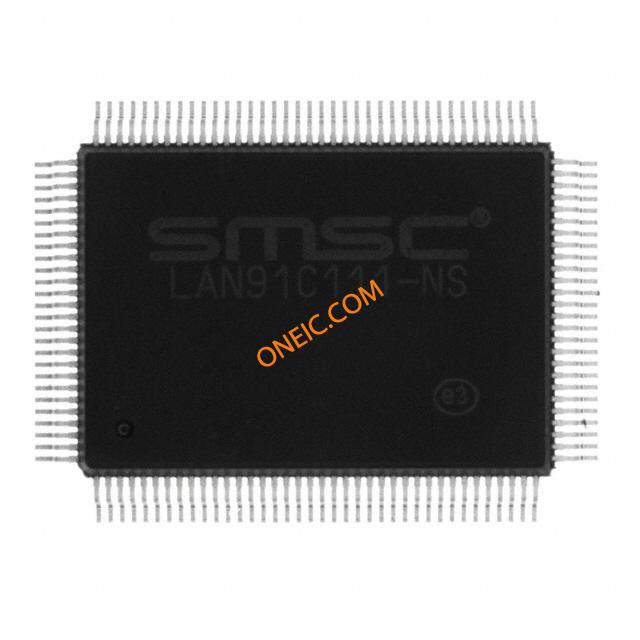

LAN91C111-NS
