LAN8700C-AEZG

High-performance Ethernet transceiver ICs for 10/100 Mbps networks

Manufacturer: ['smsc', 'microchip']

series introduction

# LAN8700C - AEZG Product Series Introduction

## 1. Overview
The LAN8700C - AEZG product series is a cutting - edge offering in the field of Ethernet physical layer transceivers (PHYs). These devices are designed to provide reliable, high - performance Ethernet connectivity for a wide range of applications, from industrial automation to consumer electronics. With a focus on efficiency, flexibility, and compatibility, the LAN8700C - AEZG series stands out as a top choice for designers looking to integrate Ethernet capabilities into their systems.

## 2. Key Features

### 2.1 High - Speed Connectivity
- **10/100 Mbps Operation**: The LAN8700C - AEZG supports both 10 Mbps and 100 Mbps Ethernet speeds. This dual - speed capability allows it to be used in various network environments, whether it's a legacy 10 Mbps network or a high - speed 100 Mbps local area network (LAN).
- **Fast Link Establishment**: It can quickly establish a link with other Ethernet devices, reducing the time required for network initialization. This is particularly important in applications where rapid network access is crucial, such as in real - time data transfer systems.

### 2.2 Low Power Consumption
- **Energy - Efficient Design**: The series is engineered with power - saving features that make it suitable for battery - powered devices or applications where energy efficiency is a priority. It can enter low - power modes when the network link is idle, significantly reducing power consumption without sacrificing performance.
- **Reduced Heat Generation**: The low power consumption also results in less heat generation, which helps to improve the overall reliability and longevity of the device, especially in enclosed or high - density environments.

### 2.3 Small Form Factor
- **Compact Package**: The LAN8700C - AEZG comes in a small and space - saving package. This makes it ideal for applications with limited board space, such as embedded systems, IoT devices, and small - form - factor consumer electronics.
- **Easy Integration**: The compact design simplifies the integration process, allowing designers to add Ethernet connectivity to their products without major modifications to the existing layout.

### 2.4 Robust ESD Protection
- **Enhanced Electrostatic Discharge (ESD) Immunity**: The product series is equipped with high - level ESD protection on its Ethernet ports. This protection helps to prevent damage from electrostatic discharges, which are common in industrial and consumer environments. It ensures the reliability and durability of the device, reducing the risk of failures due to ESD events.

### 2.5 Auto - MDI/MDIX Support
- **Automatic Crossover Detection**: The LAN8700C - AEZG features auto - MDI/MDIX functionality. This means that it can automatically detect whether a straight - through or crossover Ethernet cable is being used, eliminating the need for manual cable selection. This simplifies the installation process and makes the device more user - friendly.

## 3. Applications

### 3.1 Industrial Automation
- **Factory Automation**: In factory settings, the LAN8700C - AEZG can be used to connect various industrial devices, such as programmable logic controllers (PLCs), sensors, and actuators, to an Ethernet network. Its high - speed connectivity and robust design make it suitable for real - time data transfer and control in industrial environments.
- **Process Control**: For process control systems, the device can provide reliable communication between different components, ensuring accurate and timely data exchange for efficient process management.

### 3.2 Consumer Electronics
- **Smart Home Devices**: In smart home applications, the LAN8700C - AEZG can enable Ethernet connectivity for devices such as smart TVs, set -

Images for reference

24-QFN Pkg

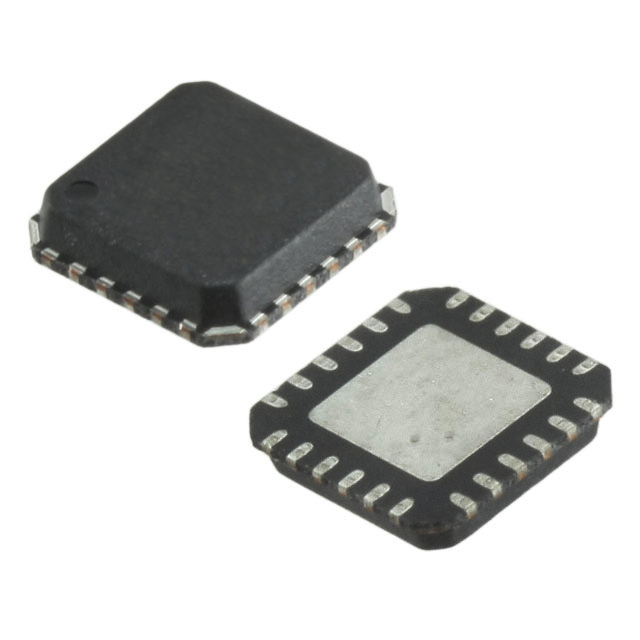

24-QFN Pkg
