L6470HTR
Microstepping motor drivers for precise motion control applications
Manufacturer： stm
series introduction
# Introduction to the L6470HTR Product Series
## Overview
The L6470HTR product series represents a cutting - edge solution in the field of motor control technology. Developed by a team of experts with a deep understanding of the industry's requirements, these devices are engineered to provide high - performance, reliable, and efficient motor control for a wide range of applications.
## Key Features
### Advanced Control Algorithms
The L6470HTR series incorporates state - of the - art control algorithms that enable precise control of stepper motors. These algorithms can optimize the motor's performance in terms of speed, torque, and positioning accuracy. For example, the microstepping control feature allows for smooth and quiet motor operation by dividing each full step into smaller micro - steps. This not only reduces vibration but also enhances the overall precision of the motor's movement, making it suitable for applications where fine - tuned control is essential, such as in 3D printers and CNC machines.
### High - Voltage and High - Current Capability
These devices are designed to handle high - voltage and high - current loads. The L6470HTR can operate at relatively high supply voltages, which enables it to drive larger and more powerful stepper motors. With a high - current output capacity, it can deliver the necessary power to the motor to achieve fast acceleration and deceleration, as well as maintain high - torque operation under various load conditions. This makes it an ideal choice for industrial automation applications where heavy - duty motors are commonly used.
### Integrated Protection Features
To ensure the reliability and longevity of both the device and the connected motor, the L6470HTR series is equipped with a comprehensive set of protection features. Over - current protection safeguards the device from damage caused by excessive current flow, which can occur due to short - circuits or motor stalls. Over - temperature protection monitors the temperature of the device and shuts it down if the temperature exceeds a safe threshold, preventing overheating and potential component failure. Additionally, under - voltage lockout protection ensures that the device operates within a stable voltage range, protecting it from the adverse effects of low - voltage conditions.
### Serial Communication Interface
The L6470HTR series features a serial communication interface, such as SPI (Serial Peripheral Interface). This interface allows for easy configuration and monitoring of the device. Users can communicate with the L6470HTR using a microcontroller or other control devices to set parameters such as motor speed, acceleration, and deceleration profiles. The ability to remotely configure the device simplifies the development process and enables real - time adjustment of motor control parameters, enhancing the flexibility of the overall system.
## Applications
### Industrial Automation
In industrial automation, the L6470HTR series plays a crucial role in controlling stepper motors used in conveyor systems, robotic arms, and packaging machinery. The high - performance control capabilities ensure accurate positioning and smooth operation of these machines, improving productivity and reducing downtime. The integrated protection features also make the devices reliable in harsh industrial environments, where electrical disturbances and mechanical stresses are common.
### Medical Equipment
Medical equipment often requires precise and reliable motor control. The L6470HTR series can be used in devices such as syringe pumps, where accurate dosing of medications is critical. The microstepping control and high - precision positioning capabilities ensure that the pump delivers the correct amount of fluid at the right rate. The quiet operation of the motor also makes it suitable for use in medical environments where noise reduction is important.
### Consumer Electronics
In consumer electronics, the L6470HTR series can be found in products such as camera lens focus mechanisms and home appliances. The ability to provide smooth and precise motor control enhances the user experience. For example, in a camera lens, the L6470HTR can ensure fast and accurate focusing,
Images for reference

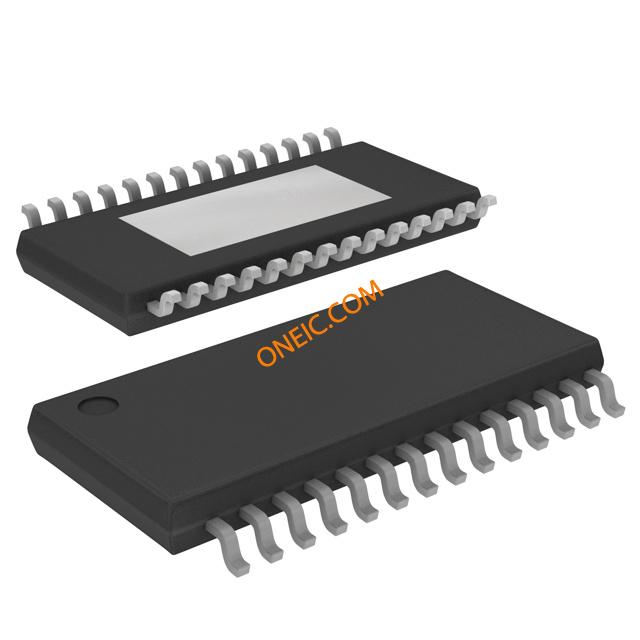

28-HTSSOP
