L6207PD

Dual full bridge motor drivers for brushed DC motors, 2.8A, 8-52V, PowerSO-36

Manufacturer: stm

series introduction

# L6207PD Product Series Introduction

## 1. Overview
The L6207PD product series is a remarkable line of integrated circuits designed to meet the diverse and demanding requirements of modern electronic systems. These devices are engineered with advanced semiconductor technology, offering high - performance, reliability, and flexibility for a wide range of applications.

## 2. Key Features

### 2.1 High - Voltage Capability
The L6207PD can handle relatively high voltages, making it suitable for applications where power delivery and control in high - voltage environments are necessary. This high - voltage tolerance allows it to be used in systems that require robust power management, such as industrial automation equipment and high - power consumer electronics.

### 2.2 Dual Full - Bridge Configuration
One of the standout features of the L6207PD series is its dual full - bridge configuration. This setup enables precise control of two independent loads, such as motors. The dual full - bridge design provides the ability to drive motors in both forward and reverse directions, as well as control their speed and torque effectively. It simplifies the design of motor control systems by integrating multiple functions into a single chip.

### 2.3 Low - On - Resistance
The integrated circuits in the L6207PD series have low on - resistance in their power switches. Low on - resistance results in reduced power dissipation during operation, which is crucial for improving the overall efficiency of the system. This not only helps in saving energy but also reduces the heat generated, thereby enhancing the reliability and lifespan of the device.

### 2.4 Built - in Protection Features
To ensure the safety and longevity of the system, the L6207PD is equipped with a variety of built - in protection features. These include over - current protection (OCP), which safeguards the device from excessive current flow that could damage the components. Thermal protection is also integrated to prevent overheating, automatically shutting down the device if the temperature exceeds a safe limit. Additionally, under - voltage lockout (UVLO) protects the device from operating at voltages below the specified range.

### 2.5 Wide Operating Temperature Range
The L6207PD series can operate within a wide temperature range. This makes it suitable for use in various environmental conditions, from industrial settings with high - temperature requirements to automotive applications where temperature fluctuations are common. The ability to function reliably across different temperatures enhances the versatility of the product.

## 3. Applications

### 3.1 Robotics
In the field of robotics, the L6207PD is an ideal choice for motor control. Robots often require precise control of multiple motors for movement, manipulation, and sensing. The dual full - bridge configuration allows for independent control of different motors, enabling complex robotic motions. The high - voltage capability and protection features ensure the reliable operation of the motors in the demanding robotic environment.

### 3.2 Industrial Automation
Industrial automation systems rely on accurate and efficient motor control for tasks such as conveyor belt operation, robotic arm movement, and machine tool control. The L6207PD's high - performance characteristics, including its low on - resistance and protection features, make it well - suited for these applications. It can handle the high - power requirements of industrial motors while maintaining energy efficiency and system reliability.

### 3.3 Automotive Electronics
In automotive applications, the L6207PD can be used for controlling various motors, such as window regulators, seat adjusters, and HVAC blowers. The wide operating temperature range and built - in protection features are essential for withstanding the harsh automotive environment, including temperature variations, vibrations, and electrical noise.

### 3.4 Consumer Electronics
Consumer electronics products like drones, 3D printers, and home appliances also benefit from the L6207PD series. In drones, it can

Images for reference

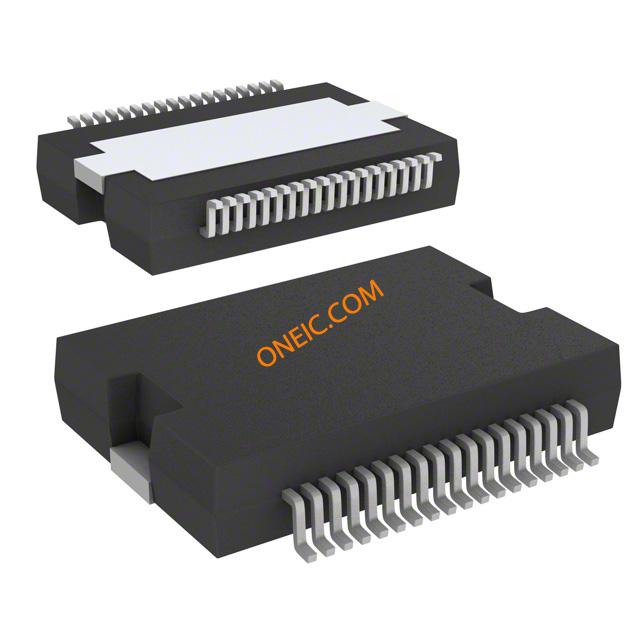

POWERSO-36
