KA5H0365
High-voltage power switch ICs for efficient power distribution
Manufacturer： ['fairchild', 'rochester', 'onsemi', 'freescale']
series introduction
The **KA5H0365 Series** is a family of high-performance, low-power offline switching regulators designed to deliver efficient and reliable power conversion in a wide range of applications. These integrated circuits (ICs) are specifically engineered for use in switch-mode power supplies (SMPS), offering a compact and cost-effective solution for both primary and secondary side control. The KA5H0365 Series is renowned for its high efficiency, low standby power consumption, and robust performance, making it an ideal choice for modern power supply designs.
One of the key features of the KA5H0365 Series is its built-in high-voltage power MOSFET, which simplifies circuit design and reduces external component count. This integration ensures high reliability and reduces the overall footprint of the power supply system. The series operates with a fixed switching frequency, which can be adjusted to optimize performance for specific applications. Additionally, the ICs incorporate advanced protection features such as over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown, ensuring safe operation under various conditions.
The design characteristics of the KA5H0365 Series emphasize energy efficiency and thermal management. The ICs are designed to operate with minimal power loss, even under light load conditions, making them suitable for energy-conscious applications. The compact and thermally efficient package design ensures effective heat dissipation, which is critical for maintaining performance and longevity in high-power applications.
The KA5H0365 Series is widely used in consumer electronics, industrial equipment, and home appliances. Typical applications include AC-DC adapters, LED drivers, auxiliary power supplies, and other low-power SMPS designs. Its versatility and reliability make it a popular choice for designers seeking a balance between performance, cost, and ease of implementation. Whether used in compact chargers, smart home devices, or industrial control systems, the KA5H0365 Series delivers consistent and dependable power conversion, meeting the demands of modern electronic systems.
Images for reference

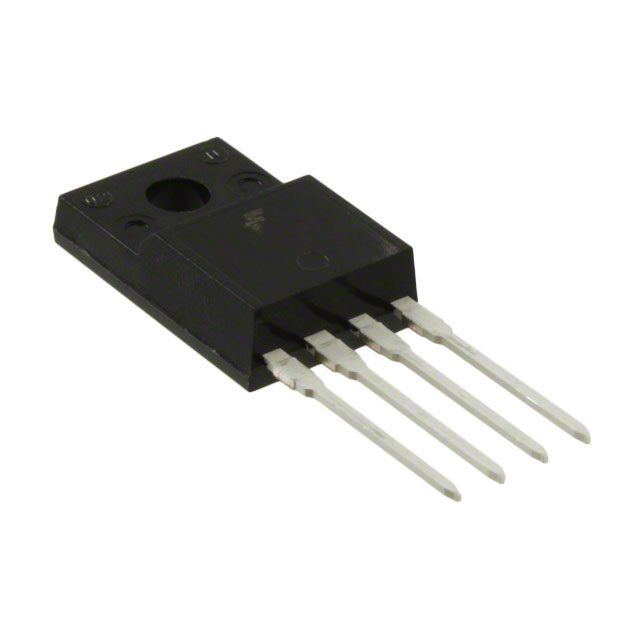

KA5x03xx-Series-Through-Hole
Image Preview
Image Preview
