IXFT36N60P
High-power N-channel MOSFETs for robust electronic applications
Manufacturer： ['ixys', 'ixys-semiconductor']
series introduction
# IXFT36N60P Product Series Introduction
## 1. Overview
The IXFT36N60P product series is a remarkable line of power MOSFETs (Metal - Oxide - Semiconductor Field - Effect Transistors) engineered by Infineon Technologies. These MOSFETs are designed to meet the demanding requirements of a wide range of power electronics applications, offering high - performance, reliability, and efficiency.
## 2. Key Features
### 2.1 Electrical Characteristics
- **Voltage Rating**: The IXFT36N60P MOSFETs have a high breakdown voltage of 600V. This high - voltage capability makes them suitable for applications where the circuit needs to handle relatively large voltage swings, such as in switch - mode power supplies (SMPS), motor control, and high - voltage inverters.
- **Current Handling Capacity**: With a continuous drain current (ID) rating of up to 36A, these MOSFETs can handle significant amounts of current. This allows them to be used in high - power applications without overheating or suffering from excessive power losses.
- **Low On - Resistance (RDS(on))**: The series features a very low on - resistance, typically in the range of a few tens of milliohms. A low RDS(on) means that when the MOSFET is in the on - state, there is less power dissipated as heat, resulting in higher efficiency and reduced power consumption. This is crucial for applications where energy efficiency is a top priority, such as in green energy systems and battery - powered devices.
### 2.2 Thermal Performance
- **Good Thermal Conductivity**: The IXFT36N60P MOSFETs are designed with materials and packaging that offer excellent thermal conductivity. This enables efficient heat dissipation from the device, preventing overheating and ensuring stable operation even under high - power conditions.
- **Thermal Resistance**: They have relatively low thermal resistance values, which means that the temperature rise of the device during operation is minimized. This helps to extend the lifespan of the MOSFET and reduces the need for complex and bulky heat - sinking solutions.
### 2.3 Switching Performance
- **Fast Switching Speeds**: These MOSFETs exhibit fast turn - on and turn - off times. Fast switching speeds are essential in applications such as high - frequency SMPS and pulse - width modulation (PWM) controllers, as they allow for higher switching frequencies, which in turn can lead to smaller and more compact power supplies.
- **Low Gate Charge**: The low gate charge of the IXFT36N60P series reduces the power required to drive the MOSFET's gate, making it easier to interface with low - power control circuits. This also contributes to overall system efficiency.
## 3. Package Options
The IXFT36N60P product series is available in a variety of industry - standard packages, such as TO - 220 and TO - 247.
- **TO - 220 Package**: This is a widely used through - hole package that offers good mechanical stability and ease of mounting on printed circuit boards (PCBs). It is suitable for medium - power applications and provides a convenient way to connect the MOSFET to the rest of the circuit.
- **TO - 247 Package**: The TO - 247 package is designed for high - power applications. It has a larger surface area for better heat dissipation and can handle higher currents compared to the TO - 220 package. This makes it ideal for applications where high - power handling and efficient thermal management are required.
## 4. Applications
### 4.1 Switch - Mode Power Supplies (SMPS)
In SMPS, the IXFT36N60P MOSFETs are used
Images for reference

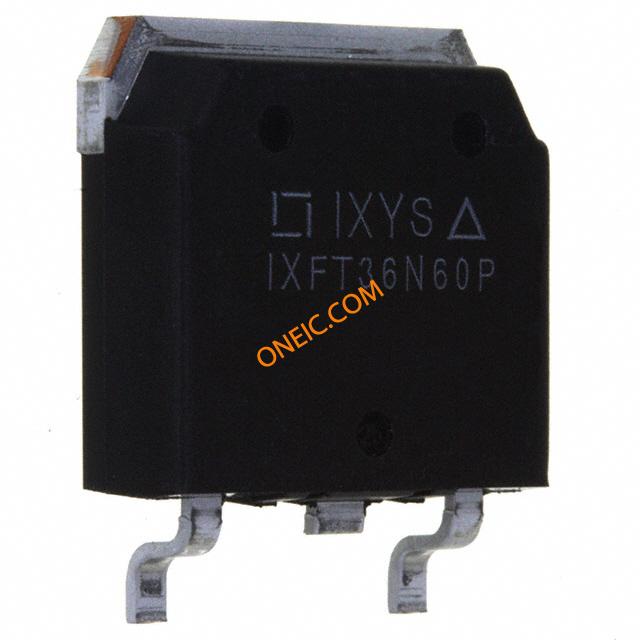

IXFT36N60P
