IXDD604PI

Dual low-side MOSFET gate drivers with 4A output in DIP8 package

Manufacturer: ['ixys', 'clare']

series introduction

# IXDD604PI Product Series Introduction

## 1. Overview
The IXDD604PI product series is a cutting - edge offering in the field of power electronics, specifically designed to meet the demanding requirements of high - performance applications. These devices are gate drivers that play a crucial role in controlling power semiconductor switches such as MOSFETs (Metal - Oxide - Semiconductor Field - Effect Transistors) and IGBTs (Insulated - Gate Bipolar Transistors). By providing precise and efficient control signals, the IXDD604PI series helps to optimize the performance, reliability, and efficiency of power conversion systems.

## 2. Key Features

### 2.1 High - Speed Switching
One of the standout features of the IXDD604PI series is its ability to support high - speed switching operations. With fast rise and fall times, these gate drivers can quickly turn on and off the power semiconductor switches, reducing switching losses. This is particularly important in applications where high - frequency operation is required, such as in switch - mode power supplies (SMPS), motor drives, and renewable energy inverters. For example, in a high - frequency SMPS, the fast switching capability of the IXDD604PI can lead to smaller passive components, resulting in a more compact and cost - effective design.

### 2.2 High Output Current
The IXDD604PI gate drivers are capable of delivering high output currents. This high - current drive capability ensures that the power semiconductor switches can be fully and quickly charged and discharged, enabling them to operate at their optimal performance levels. Whether driving large - area MOSFETs or high - power IGBTs, the IXDD604PI can provide the necessary current to minimize conduction losses and improve overall system efficiency.

### 2.3 Isolation
Isolation is a critical feature in many power electronics applications, especially those where there is a need to separate the control circuit from the high - voltage power circuit. The IXDD604PI series offers excellent isolation characteristics, which help to protect the control circuitry from high - voltage transients and noise. This isolation also enhances the safety of the system by preventing electrical shock hazards. It is commonly used in applications such as industrial motor drives, where the control and power circuits need to be electrically isolated for reliable operation.

### 2.4 Under - Voltage Lockout (UVLO)
The IXDD604PI gate drivers are equipped with an under - voltage lockout (UVLO) feature. This feature ensures that the gate driver does not operate when the supply voltage is below a certain threshold. By preventing the gate driver from operating in an unstable or unreliable voltage condition, the UVLO feature helps to protect the power semiconductor switches from damage and improves the overall reliability of the system.

### 2.5 Thermal Performance
Good thermal performance is essential for the long - term reliability of electronic components. The IXDD604PI series is designed with thermal management in mind. It has a low power dissipation design, which helps to reduce the amount of heat generated during operation. Additionally, the package is designed to efficiently transfer heat away from the device, ensuring that it can operate within a safe temperature range even under high - load conditions.

## 3. Applications

### 3.1 Switch - Mode Power Supplies (SMPS)
In SMPS, the IXDD604PI gate drivers are used to control the power switches (MOSFETs or IGBTs) that regulate the output voltage. The high - speed switching and high - output current capabilities of the IXDD604PI allow for efficient power conversion, reducing energy losses and improving the overall efficiency of the power supply. This is crucial in applications such as computer power supplies, where high efficiency and compact size are highly desirable.

### 3.2 Motor Drives
Motor

Images for reference

8-DIP

8-DIP

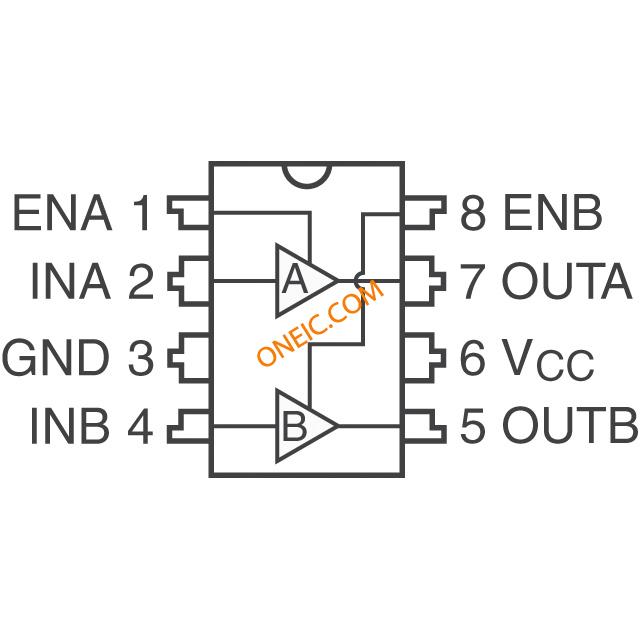

IXDD604PI SCHEMATIC

IXDD604PI SCHEMATIC
