ISL22316
128-position digital potentiometers in compact 10-pin MSOP/TDFN packages
Manufacturer： ['renesas', 'intersil']
series introduction
The **ISL22316 Series** is a family of digitally controlled potentiometers (DCPs) designed to deliver precision, flexibility, and reliability in a wide range of electronic applications. These devices integrate non-volatile memory with a digitally controlled resistor network, enabling users to program and store resistance settings with high accuracy. The ISL22316 Series is particularly well-suited for applications requiring fine-tuned adjustments, such as calibration, signal conditioning, and system control.
One of the key features of the ISL22316 Series is its **high-resolution digital interface**, which allows for precise resistance adjustments. With a resolution of up to 256 taps, these potentiometers provide exceptional control over resistance values, ensuring consistent performance in critical applications. The non-volatile memory feature ensures that the programmed settings are retained even when power is removed, making them ideal for systems that require persistent configuration. Additionally, the series supports a wide operating voltage range, typically from 2.7V to 5.5V, making it compatible with both 3.3V and 5V systems.
The **compact and robust design** of the ISL22316 Series makes it suitable for space-constrained applications. Available in small form factors, these devices are ideal for integration into modern electronic systems where board real estate is at a premium. The series also features low power consumption, which is critical for battery-powered devices and energy-efficient designs. Furthermore, the devices are designed to operate reliably across a wide temperature range, ensuring consistent performance in harsh environments.
Typical applications for the ISL22316 Series include **audio equipment**, where it can be used for volume control and tone adjustment, and **industrial automation systems**, where it is employed for calibration and process control. It is also widely used in **consumer electronics**, such as smart home devices, for user interface adjustments, and in **automotive systems** for sensor calibration and control. The combination of precision, durability, and versatility makes the ISL22316 Series a preferred choice for engineers seeking reliable and programmable resistance solutions.
In summary, the ISL22316 Series offers a blend of advanced digital control, compact design, and robust performance, making it an excellent choice for a variety of applications across multiple industries. Its ability to deliver precise, repeatable adjustments ensures that it meets the demands of modern electronic systems, from consumer gadgets to industrial machinery.
Images for reference

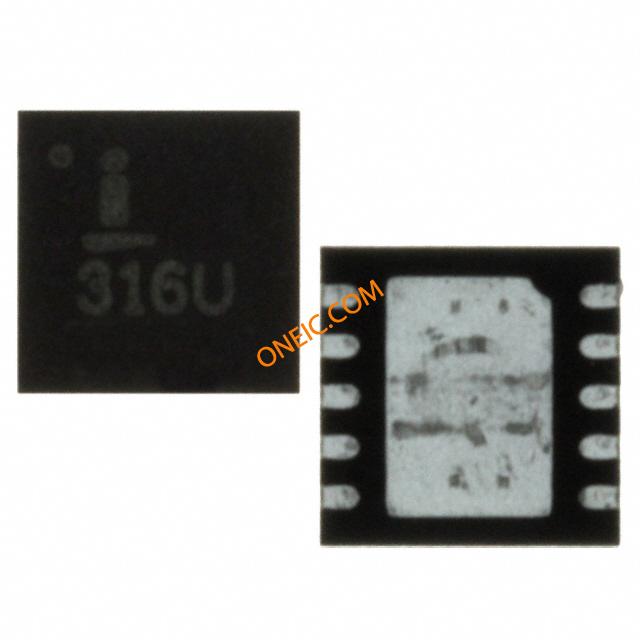

10-TDFN-Exposed-Pad
ISL22316UFRT10Z-TK
10-TFSOP, 10-MSOP
