IS61C6416AL-12KLI

5V asynchronous SRAM chips with 1M-bit capacity in 44-pin SOJ packaging

Manufacturer: issi

series introduction

# IS61C6416AL - 12KLI Product Series Introduction

## 1. Overview
The IS61C6416AL - 12KLI is a high - performance static random - access memory (SRAM) product series designed to meet the demanding requirements of various electronic systems. SRAM is known for its fast access times and low power consumption compared to other types of memory, making it an ideal choice for applications where speed and efficiency are crucial.

## 2. Key Features

### 2.1 Memory Capacity
The IS61C6416AL - 12KLI offers a substantial memory capacity of 64K x 16 bits. This large capacity allows it to store a significant amount of data, making it suitable for applications that require the storage of large datasets, such as image processing, data logging, and real - time data buffering.

### 2.2 Fast Access Time
One of the standout features of this product series is its fast access time of 12 ns. This extremely short access time enables the memory to quickly retrieve and store data, which is essential for high - speed applications. For example, in high - frequency communication systems, the fast access time ensures that data can be transferred and processed without significant delays, improving the overall system performance.

### 2.3 Low Power Consumption
The IS61C6416AL - 12KLI is designed with power efficiency in mind. It consumes relatively low power during both active and standby modes. In active mode, the low power consumption helps to reduce the overall power budget of the system, which is especially important for battery - powered devices. In standby mode, the memory enters a low - power state, further conserving energy when the system is not actively accessing the memory.

### 2.4 Compatibility
This SRAM series is highly compatible with a wide range of microcontrollers, microprocessors, and other digital integrated circuits. It uses standard TTL (Transistor - Transistor Logic) levels for input and output, which simplifies the interface design and allows for easy integration into existing electronic systems.

### 2.5 ESD Protection
The IS61C6416AL - 12KLI is equipped with electrostatic discharge (ESD) protection. This protection helps to safeguard the memory from damage caused by electrostatic charges, which can be generated during handling, assembly, or normal operation. By providing ESD protection, the product's reliability and lifespan are significantly enhanced.

## 3. Package and Pin Configuration

### 3.1 Package Type
The IS61C6416AL - 12KLI is available in a standard 32 - pin plastic dual - in - line package (DIP). The DIP package is widely used in the electronics industry due to its ease of handling, soldering, and replacement. It also provides good mechanical stability and electrical isolation.

### 3.2 Pin Configuration
The 32 - pin configuration of the IS61C6416AL - 12KLI is carefully designed to provide easy access to all the necessary signals. The pins include address lines, data lines, control lines (such as chip select, output enable, and write enable), and power supply pins. The clear and well - defined pin layout simplifies the circuit design and ensures reliable operation.

## 4. Applications

### 4.1 Embedded Systems
In embedded systems, the IS61C6416AL - 12KLI can be used as a data cache or buffer memory. For example, in industrial control systems, it can store sensor data temporarily before it is processed by the main controller. The fast access time ensures that the controller can quickly access the data, enabling real - time control and

Images for reference

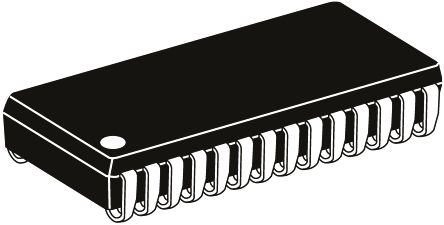

44-SOJ

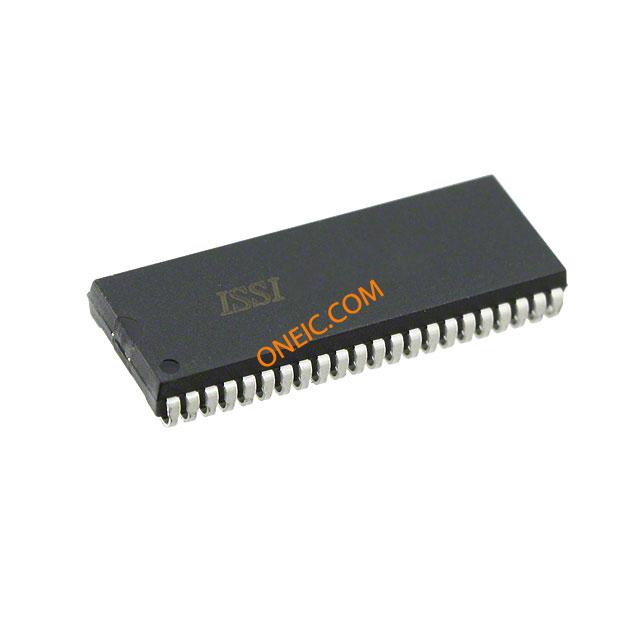

44-SOJ
